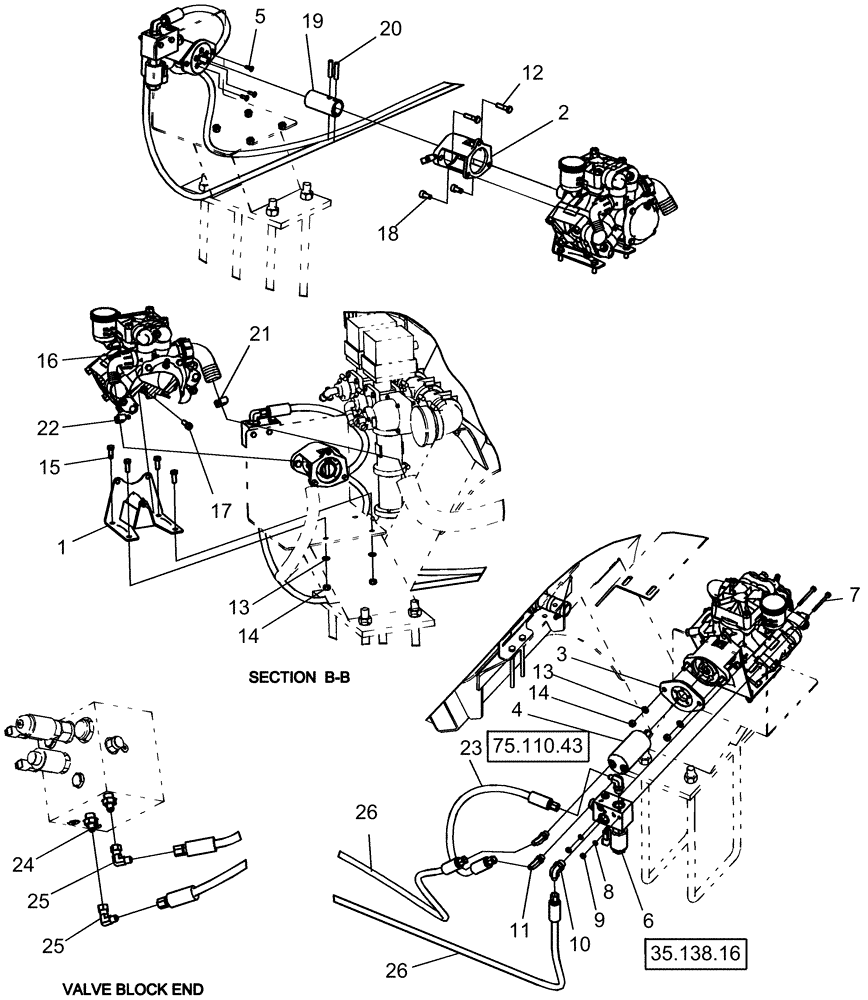

Запчасти Case IH 1250 (75.110.33) - LIQUID FERTILIZER - PUMP AND MOUNTING - 24 ROW, 400 GALLON TANK (75) - SOIL PREPARATION

1

408358A1

BASE

mount pump kit

1шт.

2

86990284

FLANGE

motor mounting

1шт.

3

400300A1

FLANGE

mounting znd

1шт.

4

284797A1

MOTOR

19.8 cm³ (1.21 in³) disp fert drive

1шт.

4

284797A1R

REMAN-HYD MOTOR

1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES, 19.8 cm³ (1.21 in³) disp fert drive, 24 ROW, 400 GALLON TANK (1/07-)

1шт.

4

284797A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

5

87659

HEX SOC SCREW,FLAT, 1/4" - 28 x 3/4"

3шт.

6

419865A1

CONTROL VALVE

assembly flow variable rate

1шт.

7

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

2шт.

8

80682

LOCK WASHER,1/4"

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

10

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

11

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

12

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

14

9628503

NUT,3/8"-16, G5

6шт.

15

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

87504661

PUMP

30 gpm diaphragm

1шт.

17

9832986

HEX SOC SCREW,M10 x 30mm, Cl 8.8

Hex Soc Hd, M10 x 30, 8.8

1шт.

18

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

2шт.

19

400299A2

COUPLING

, Serial Range: pump-motor

1шт.

20

13916870

ROLL PIN,M10 x 45, Coiled

2шт.

21

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.

22

9706921

HOSE CLAMP,12.7mm - 35mm

, Serial Range: -Y9S007001

1шт.

22

86536660

HOSE CLAMP,25mm - 44mm

, Start Serial: Y9S007001

1шт.

23

1336840C1

HYDRAULIC HOSE

3/8" x 25" fl, Serial Range: -Y9S007001

1шт.

23

1251872C2

HYDRAULIC HOSE

3/8" x 23" fl, 3/8" fjic x 3/8" fjic, Start Serial: Y9S007001

1шт.

24

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

25

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

26

435693A1

HYDRAULIC HOSE

3/8" x 355" fl

2шт.
