Запчасти Case IH 1250 (35.100.04) - HYDRAULICS - CENTER LIFT WHEELS HOSE ROUTING - 12 ROW (35) - HYDRAULIC SYSTEMS

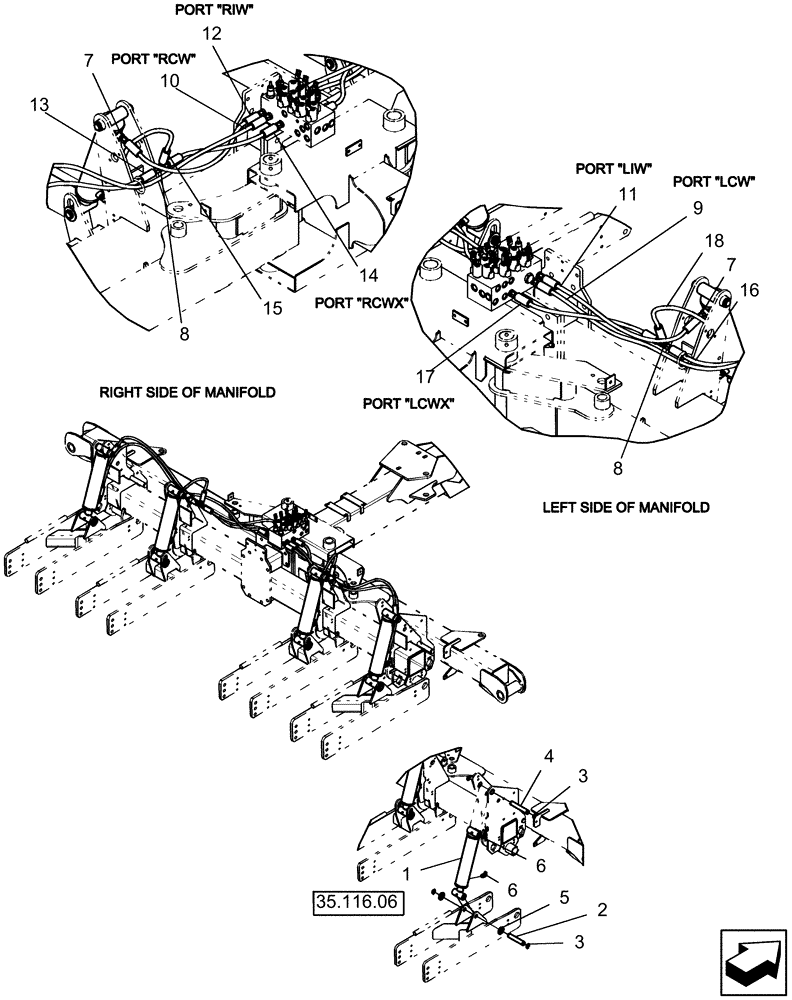

Схема запчастей Case IH 1250 - (35.100.04) - HYDRAULICS - CENTER LIFT WHEELS HOSE ROUTING - 12 ROW (35) - HYDRAULIC SYSTEMS
8
7
5
16
1
15
14
12
35.116.06
17
13
3
7
6
3
18
11
4
2
8
6
9
10

Артикул

Название

Примечание

Количество

1

87596774

CYLINDER

3 1/2" x 13 3/4"

4шт.

1

84525025R

REMAN-HYD CYLINDER

"1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES, 12 ROW (1/07-), Reman for New PN 87596774"

4шт.

1

84525025C

CORE-HYD CYLINDER

Return Number

4шт.

2

87578135

PIN

31.75 mm x 159 mm ul

4шт.

3

86625148

SNAP RING,#125, Ext

16шт.

4

87604816

PIN

31.75 mm x 179.4 mm ul

4шт.

5

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

8шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

6шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

8шт.

8

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

9

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

10

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

1шт.

11

1304245C2

HYDRAULIC HOSE

1/2" x 37" fl

1шт.

12

1336925C1

HYDRAULIC HOSE

1/2" x 33" fl

1шт.

13

90874C1

HYDRAULIC HOSE

1/2" x 55" fl

1шт.

14

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

1шт.

15

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

1шт.

16

90874C1

HYDRAULIC HOSE

1/2" x 55" fl

1шт.

17

90875C1

HYDRAULIC HOSE

1/2" x 29" (735 mm) fl

1шт.

18

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

1шт.

Выбрано товаров: 20
