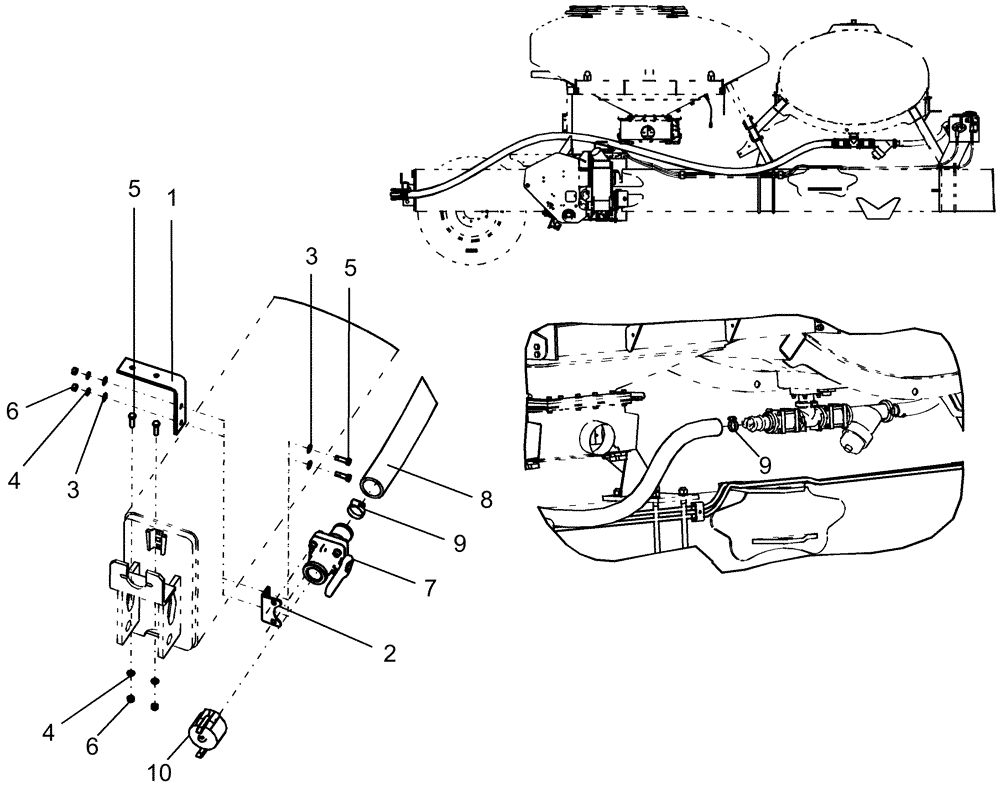

Запчасти Case IH 1250 (75.110.30) - LIQUID FERTILIZER - QUICK FILL - 24 ROW, 400 GALLON TANK (75) - SOIL PREPARATION

1

87743689

BRACKET

ball valve mounting

1шт.

2

87419379

BRACKET

ball valve

1шт.

3

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

5

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

6

9628503

NUT,3/8"-16, G5

4шт.

7

87503192

SHUT-OFF VALVE,2" Valve

2"

1шт.

8

408352A1

HOSE

2" id wire suction

1шт.

Cut to 4430 mm long

1шт.

9

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

10

405799A1

DUST CAP,2" Cap w/Short Arms

poly 2" cam lever coupling

1шт.
