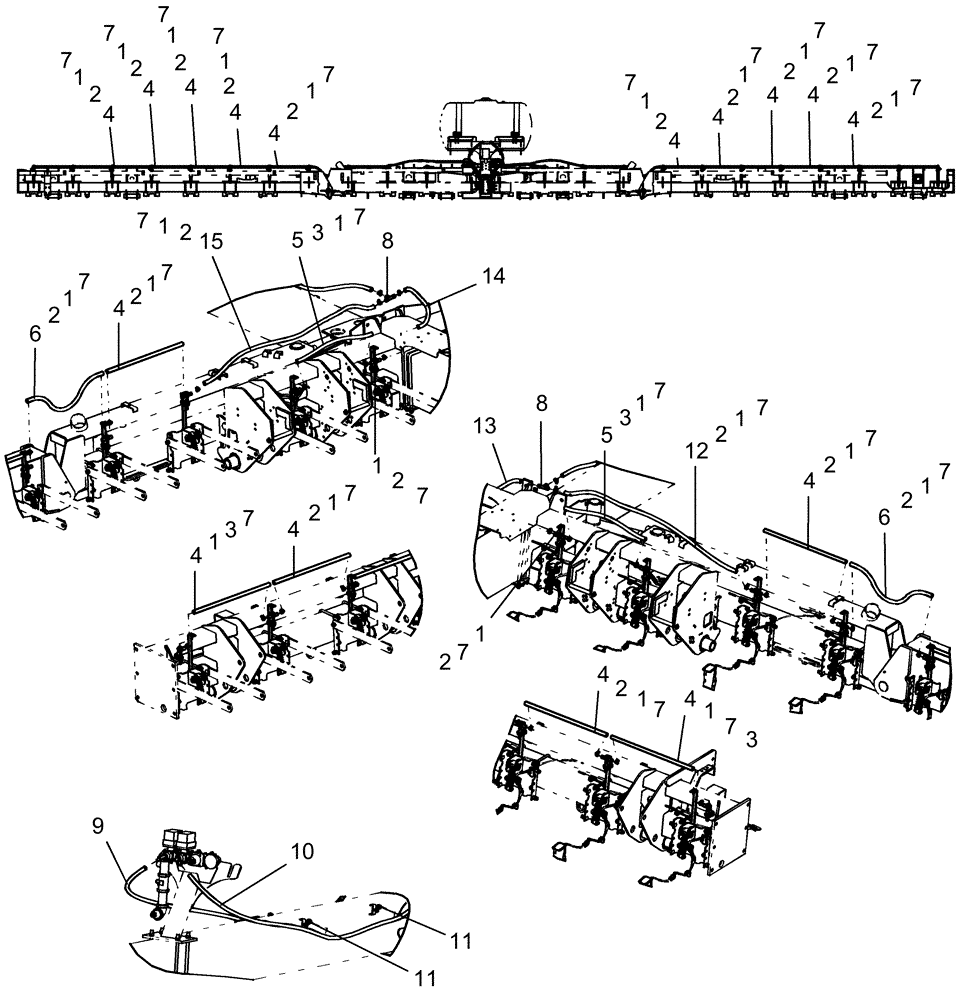

Запчасти Case IH 1250 (75.110.29) - LIQUID FERTILIZER - DISTRIBUTION HOSES AND SUPPORTS - 24 ROW, 400 GALLON TANK (75) - SOIL PREPARATION

1

87673671

BRACKET

valve mount

24шт.

2

241017A1

NOZZLE

tee assembly 3/4"

20шт.

3

241019A1

NOZZLE

elbow assembly 3/4"

4шт.

4

86993466

HOSE,0.75" ID

Order in Multiples of 100

16шт.

Cut to 762 mm long

1шт.

5

86993466

HOSE,0.75" ID

Order in Multiples of 100

2шт.

Cut to 762 mm long

1шт.

6

86993466

HOSE,0.75" ID

Order in Multiples of 100

2шт.

Cut to 838 mm long

1шт.

7

9706921

HOSE CLAMP,12.7mm - 35mm

50шт.

8

87669667

FITTING,3/4" Hose Barb Tee

poly 3/4" hb

2шт.

9

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 3866 mm long

1шт.

10

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 3866 mm long

1шт.

11

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

12

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 1635 mm long

1шт.

13

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 552 mm long

1шт.

14

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 552 mm long

1шт.

15

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 1905 mm long

1шт.
