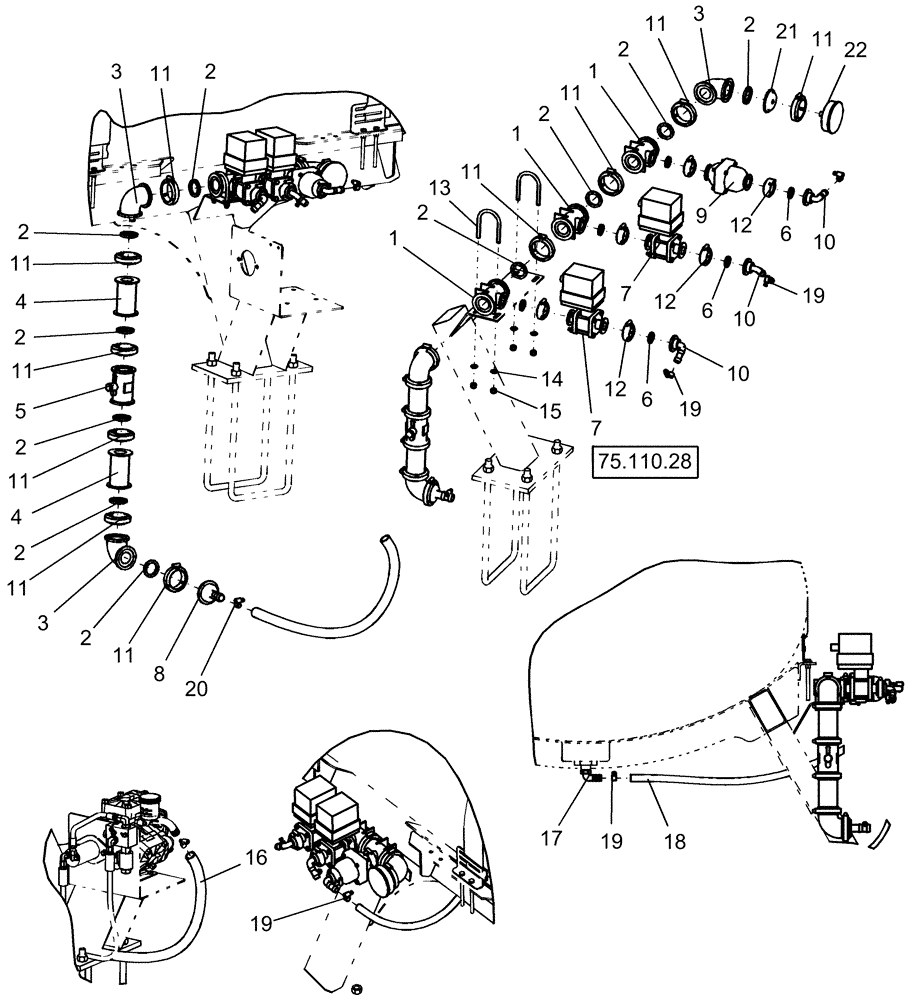

Запчасти Case IH 1250 (75.110.27) - LIQUID FERTILIZER - PLUMBING AND CONTROL - 24 ROW, 400 GALLON TANK (75) - SOIL PREPARATION

1

86984089

TEE,2" Port x 1" Flanged Tee

2" x 2" x 1"

3шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

10шт.

3

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

3шт.

4

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

poly 2 flange manifold

2шт.

5

87504660

METER

flow

1шт.

6

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

6шт.

7

406039A1

SOLENOID VALVE,1" Electric Valve

control 2 section fertilizer

2шт.

8

86987616

FITTING,2" Flange x 1" Hose Barb

2" flange x 1" barb

1шт.

9

87268172

VALVE

Check 1" MFD 100PSIG

1шт.

10

405785A1

ELBOW

poly 90º 1" flange x 3/4" hb

3шт.

11

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

10шт.

12

406041A1

CLAMP,58.51mm

1" flange banjo #fc100

6шт.

13

87413269

U-BOLT

ur 3/8"-16 x 2 1/2" wide x 4" deep ss with 1 3/4" thread

2шт.

14

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

15

86985855

LOCK NUT

3/8"-16 ss 1-way, nylon insert

4шт.

16

134329C3

HOSE

1" x 50' epdm

1шт.

Cut to 777 mm long

1шт.

17

328179A1

ELBOW

fitting poly 90° 3/4" mpt 3/4" mpt

1шт.

18

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 1358 mm long

1шт.

19

9706921

HOSE CLAMP,12.7mm - 35mm

4шт.

20

86536660

HOSE CLAMP,25mm - 44mm

1шт.

21

87670356

PLUG,2" Flange Plug with 1/4" FPT

2"

1шт.

22

86990418

GAUGE

pressure 4" SS 0 - 100 PSI

1шт.
