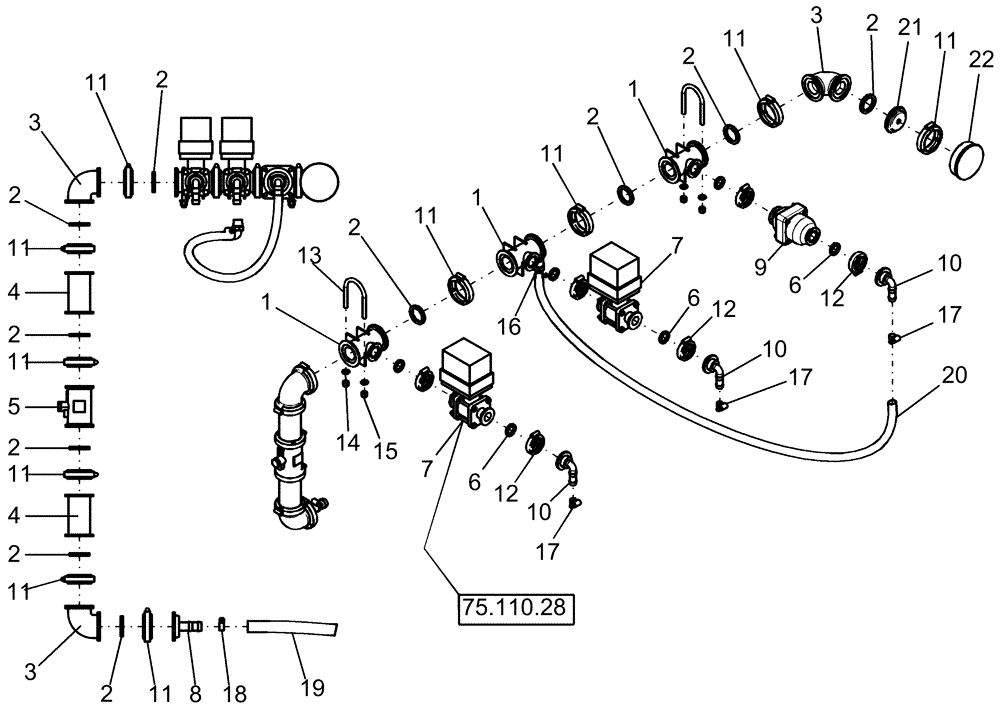

Запчасти Case IH 1250 (75.110.23) - LIQUID FERTILIZER - PLUMBING AND CONTROL - 12 ROW AND 16 ROW (75) - SOIL PREPARATION

1

86984089

TEE,2" Port x 1" Flanged Tee

2" x 2" x 1"

3шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

10шт.

3

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

3шт.

4

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

poly 2 flange manifold

2шт.

5

406037A2

METER

flow liquid fertilizer

1шт.

6

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

6шт.

7

406039A1

SOLENOID VALVE,1" Electric Valve

control 2 section fertilizer

2шт.

8

86987616

FITTING,2" Flange x 1" Hose Barb

2" flange x 1" barb

1шт.

9

87268172

VALVE

Check 1" MFD 100PSIG

1шт.

10

405785A1

ELBOW

poly 90º 1" flange x 3/4" hb

3шт.

11

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

10шт.

12

406041A1

CLAMP,58.51mm

1" flange banjo #fc100

6шт.

13

87413269

U-BOLT

ur 3/8"-16 x 2 1/2" wide x 4" deep ss with 1 3/4" thread

2шт.

14

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

15

86985855

LOCK NUT

3/8"-16 ss 1-way, nylon insert

4шт.

16

328179A1

ELBOW

fitting poly 90° 3/4" mpt 3/4" mpt

1шт.

17

9706921

HOSE CLAMP,12.7mm - 35mm

4шт.

18

86536660

HOSE CLAMP,25mm - 44mm

1шт.

19

134329C3

HOSE

1" x 50' epdm

1шт.

Cut to 1400 mm long

1шт.

20

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 1584 mm long

1шт.

21

87670356

PLUG,2" Flange Plug with 1/4" FPT

2"

1шт.

22

86990418

GAUGE

pressure 4" SS 0 - 100 PSI

1шт.

23

87575103

HARNESS

liquid fertilizer, ISO

1шт.

24

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

25

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

5шт.

26

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

27

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

28

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.
