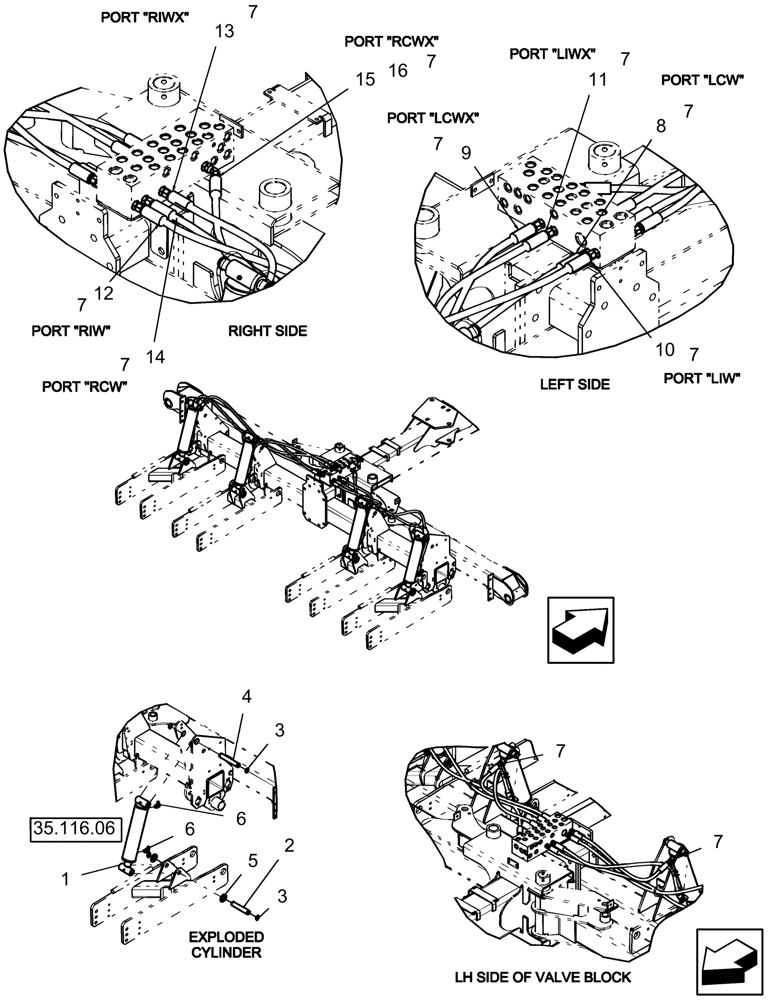

Запчасти Case IH 1250 (35.100.03[02]) - HYDRAULICS - CENTER LIFT WHEELS HOSE ROUTING - 16 ROW ASN Y9S007001 (35) - HYDRAULIC SYSTEMS

1

87596774

CYLINDER

3 1/2" x 13 3/4"

4шт.

1

84525025R

REMAN-HYD CYLINDER

1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES, 3 1/2" x 13 3/4", 16 ROW ASN Y9S007001 (1/07-), Reman for New PN 87596774

4шт.

1

84525025C

CORE-HYD CYLINDER

Return Number

4шт.

2

87578135

PIN

31.75 mm x 159 mm ul

4шт.

3

86625148

SNAP RING,#125, Ext

16шт.

4

87604816

PIN

31.75 mm x 179.4 mm ul

4шт.

5

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

8шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

6шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

10шт.

8

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

9

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

10

1304245C2

HYDRAULIC HOSE

1/2" x 37" fl

1шт.

11

90882C1

HYDRAULIC HOSE,12.70 mm ID x 1195.00 mm, SAE 100R1

1шт.

12

1336925C1

HYDRAULIC HOSE

1/2" x 33" fl

1шт.

13

91160C1

HYDRAULIC HOSE,12.70 mm ID x 1090.00 mm, SAE 100R1

1шт.

14

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

1шт.

15

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

16

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.
