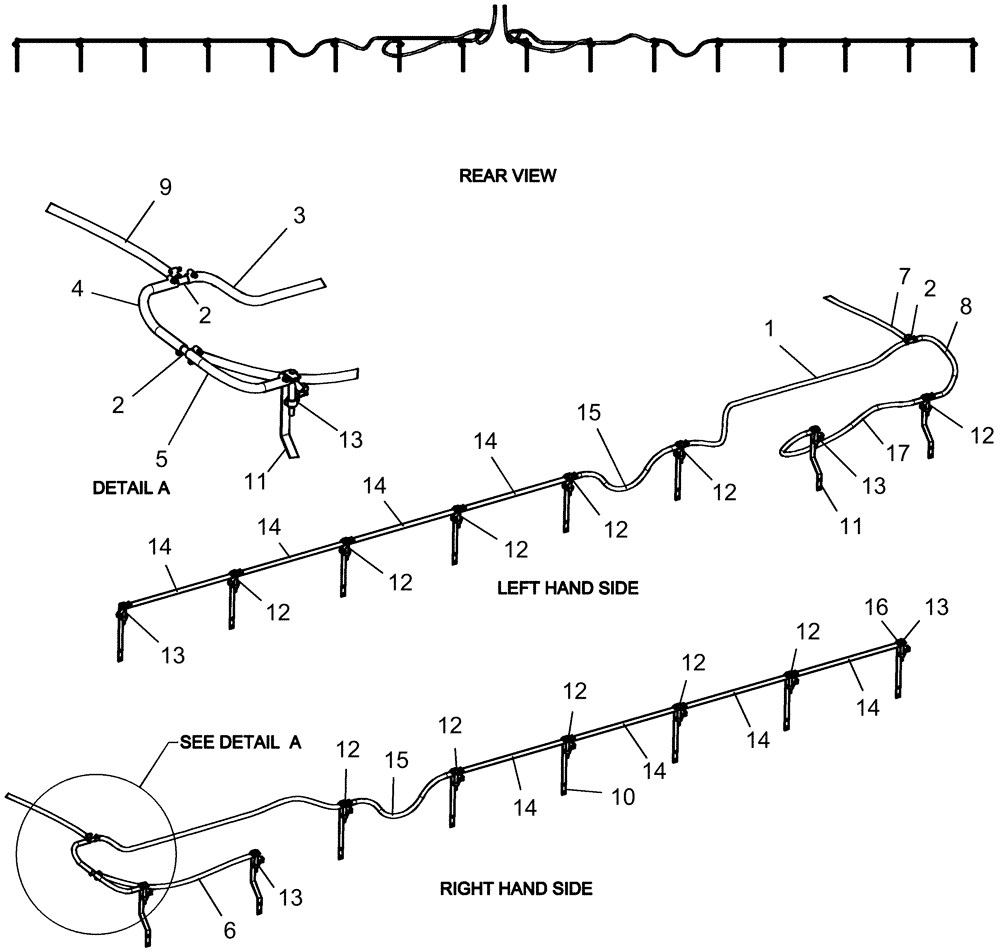

Запчасти Case IH 1250 (75.110.19) - LIQUID FERTILIZER - DISTRIBUTION HOSES AND SUPPORTS - 16 ROW, 600 GALLON TANK (75) - SOIL PREPARATION

1

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 1810 mm long

1шт.

2

87669667

FITTING,3/4" Hose Barb Tee

poly 3/4" hb

3шт.

3

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 1685 mm long

1шт.

4

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 375 mm long

1шт.

5

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 375 mm long

1шт.

6

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 1050 mm long

1шт.

7

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 2340 mm long

1шт.

8

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 762 mm long

1шт.

9

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 2340 mm long

1шт.

10

87673671

BRACKET

valve mount

12шт.

11

87737640

BRACKET

fertilizer offset

4шт.

12

241017A1

NOZZLE

tee assembly 3/4"

11шт.

13

241019A1

NOZZLE

elbow assembly 3/4"

5шт.

14

86993466

HOSE,0.75" ID

Order in Multiples of 100

8шт.

Cut to 762 mm long

1шт.

15

86993466

HOSE,0.75" ID

Order in Multiples of 100

2шт.

Cut to 838 mm long

1шт.

16

9706921

HOSE CLAMP,12.7mm - 35mm

36шт.

17

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 1257 mm long

1шт.
