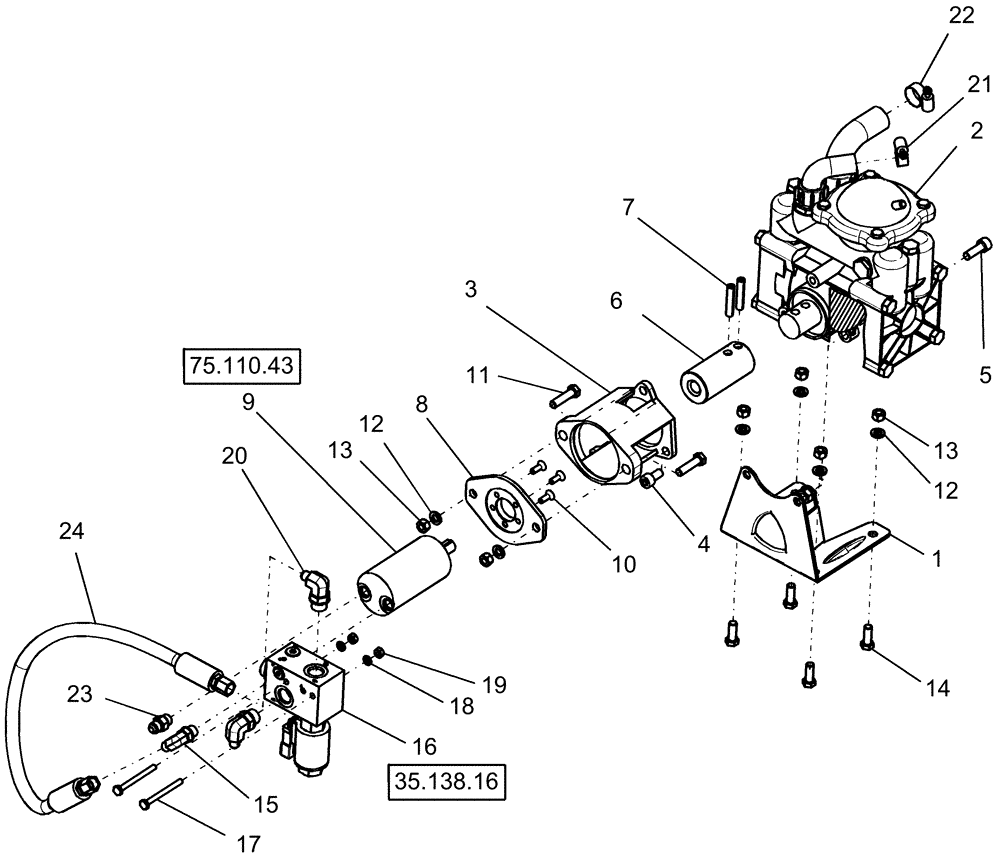

Запчасти Case IH 1250 (75.110.13) - LIQUID FERTILIZER - PUMP AND MOUNTING - 400 GALLON TANK (75) - SOIL PREPARATION

1

408358A1

BASE

mount pump kit

1шт.

2

403008A1

PUMP

diaphram low pressure, 19 GPM At 550 RPM

1шт.

3

86990284

FLANGE

motor mounting

1шт.

4

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

2шт.

5

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

Hex Soc Hd, M10 x 30, 8.8

1шт.

6

400299A2

COUPLING

pump to motor

1шт.

7

13916870

ROLL PIN,M10 x 45, Coiled

2шт.

8

400300A1

FLANGE

mounting znd

1шт.

9

284797A1

MOTOR

19.8 cm³ (1.21 in³) disp fert drive

1шт.

9

284797A1R

REMAN-HYD MOTOR

1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES, 19.8 cm³ (1.21 in³) disp fert drive, 400 GALLON TANK (1/07-)

1шт.

9

284797A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

10

87659

HEX SOC SCREW,FLAT, 1/4" - 28 x 3/4"

3шт.

11

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

12

80680

LOCK WASHER,3/8 0.381 CST ZND

Not Required With Flange Nuts

6шт.

13

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.

14

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

15

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

16

419865A1

CONTROL VALVE

assembly flow variable rate

1шт.

17

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

2шт.

18

80682

LOCK WASHER,1/4"

Not Required With Flange Nuts

2шт.

19

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

20

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

2шт.

21

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

22

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.

23

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

24

1251872C2

HYDRAULIC HOSE

3/8" x 23" fl, 3/8" fjic x 3/8" fjic

1шт.
