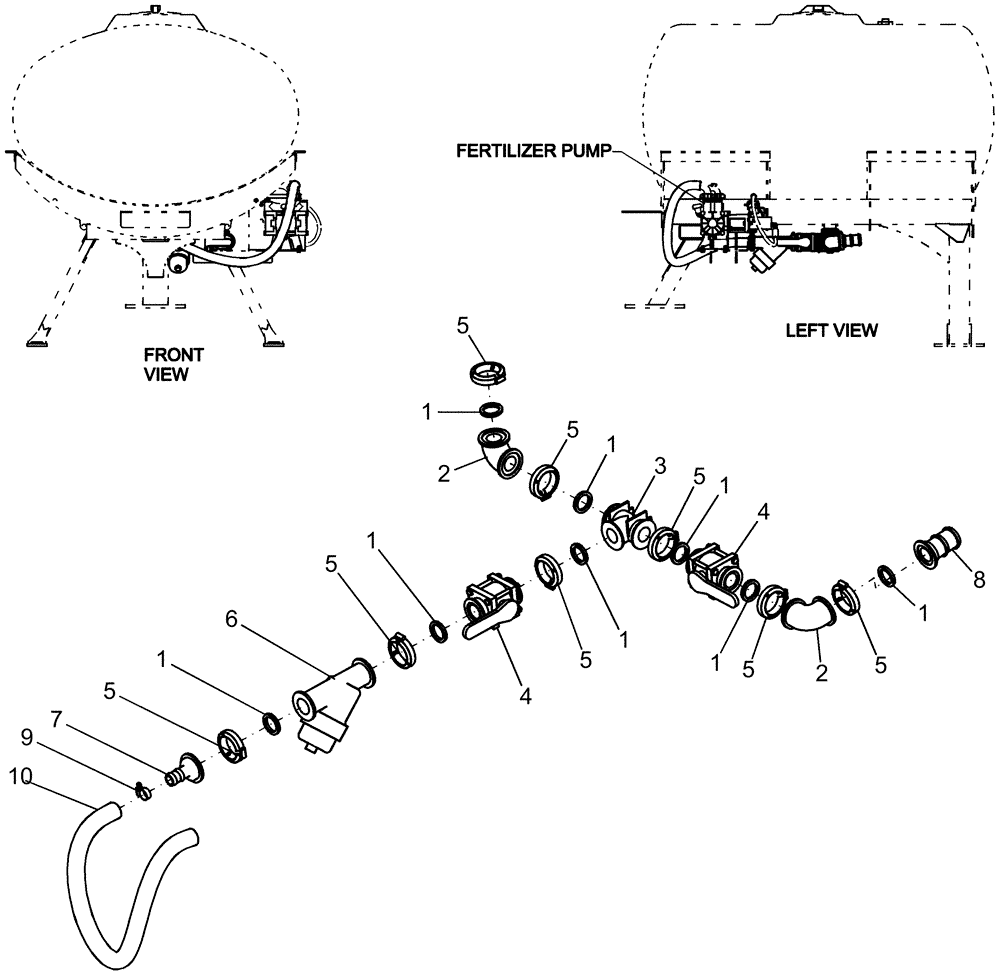

Запчасти Case IH 1250 (75.110.12) - LIQUID FERTILIZER - TANK VALVES - 12 ROW, 400 GALLON TANK (75) - SOIL PREPARATION

1

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

8шт.

2

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

2шт.

3

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

4

405800A1

VALVE,2" Flange Ball Valve

ball 2" flange bolted

2шт.

5

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

8шт.

6

405798A1

STRAINER ELEMENT,AAH

fitting poly y 2" line 80 mesh

1шт.

7

86990856

FITTING,2" Flange x 1-1/4" Hose Barb

2" manifold x 1 1/4" barb

1шт.

8

405780A1

FITTING,2" Flange x 2" Hose Barb

poly str 2 flng x 2 hb

1шт.

9

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.

10

86984447

HOSE,1.25" ID BULK x 100.00'

1шт.

Cut to 1050 mm long

1шт.
