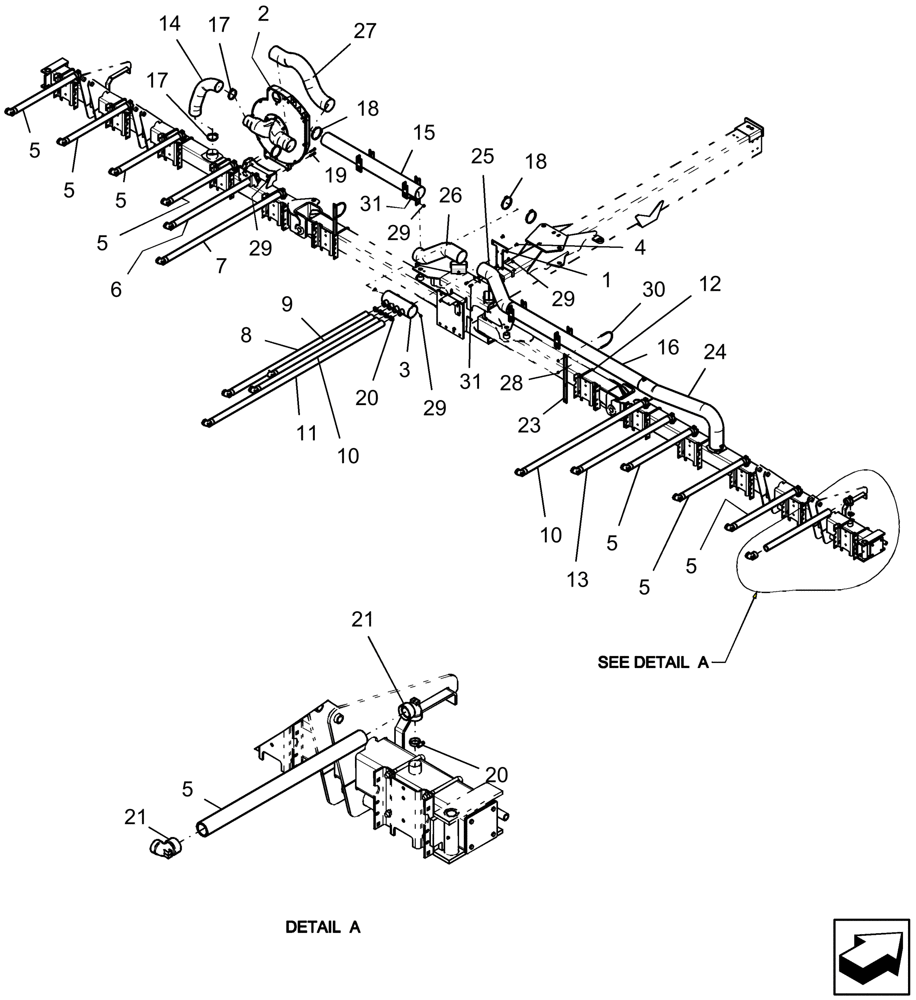

Запчасти Case IH 1250 (75.100.02[02]) - FRAME - VACUUM SYSTEM, STD ROWS - 16 ROW ASN Y9S007001 (75) - SOIL PREPARATION

1

87475873

BRACKET

manifold

1шт.

2

87540687

FAN

assembly vacuum 24 row RH

1шт.

3

87659652

MANIFOLD

5 1/2" x 5 1/2" x 2"

1шт.

4

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

87501726

HOSE

vacuum 2" x 50' bulk

8шт.

Cut to 927 mm long

1шт.

6

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1212 mm long

1шт.

7

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1714 mm long

1шт.

8

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 2006 mm long

1шт.

9

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1441 mm long

1шт.

10

87501726

HOSE

vacuum 2" x 50' bulk

2шт.

Cut to 1765 mm long

1шт.

11

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 2527 mm long

1шт.

12

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

20шт.

13

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1334 mm long

1шт.

14

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

Cut to 812 mm long

1шт.

15

87476390

BRACKET

short, vacuum

1шт.

16

87476392

BRACKET

long, vacuum

1шт.

17

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

18

214-1488

HOSE CLAMP,130.05mm - 152.4mm

8шт.

19

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

20

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

16шт.

21

87500119

TUBE

90º 50 mm - vacuum

28шт.

23

87480600

BRACKET

support

2шт.

24

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

Cut to 1365 mm long

1шт.

25

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

Cut to 603 mm long

1шт.

26

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

Cut to 570 mm long

1шт.

27

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

Cut to 990 mm long

1шт.

28

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

29

247780

SERRATED NUT,Flg, USR, 3/8"-16

18шт.

30

87478101

U-BOLT

ur 1/4"-20 x 5.82" wide x 6.06" deep

2шт.

31

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

21шт.
