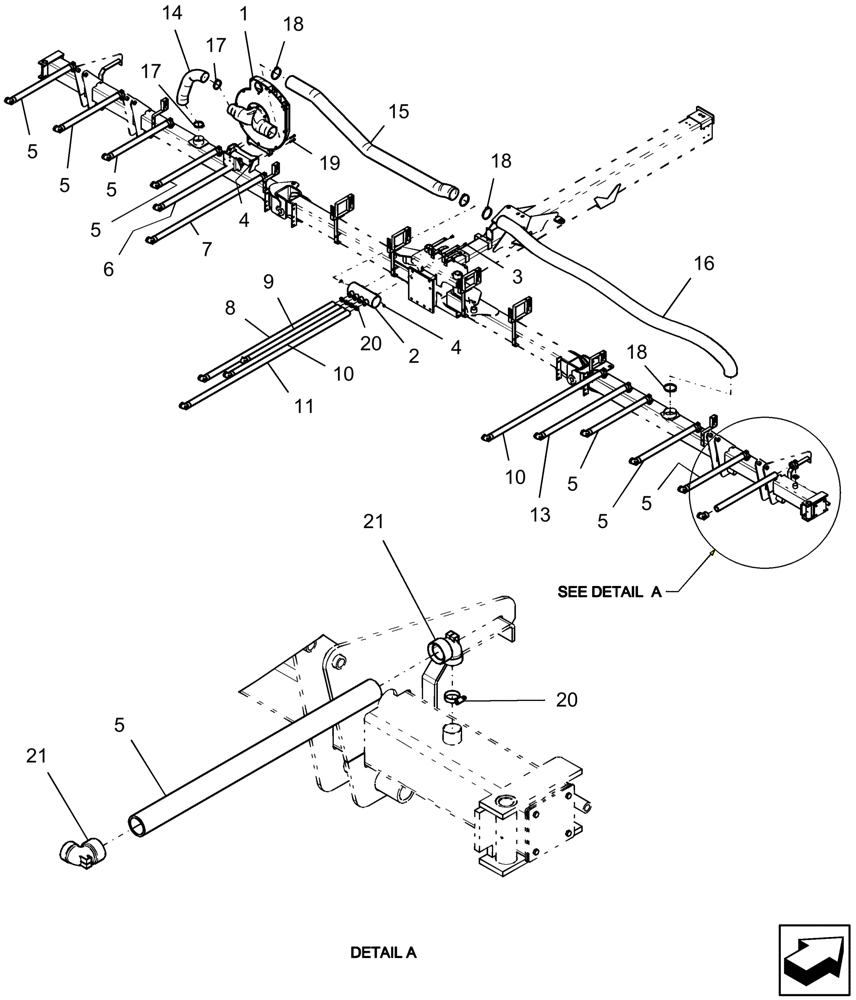

Запчасти Case IH 1250 (75.100.02[01]) - FRAME - VACUUM SYSTEM, STD ROWS - 16 ROW BSN Y9S007001 (75) - SOIL PREPARATION

1

87540687

FAN

assembly vacuum 24 row RH

1шт.

2

87659652

MANIFOLD

5 1/2" x 5 1/2" x 2"

1шт.

3

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

5

87501726

HOSE

vacuum 2" x 50' bulk

8шт.

Cut to 927 mm long

1шт.

6

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1212 mm long

1шт.

7

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1714 mm long

1шт.

8

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 2006 mm long

1шт.

9

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1441 mm long

1шт.

10

87501726

HOSE

vacuum 2" x 50' bulk

2шт.

Cut to 1765 mm long

1шт.

11

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 2527 mm long

1шт.

13

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1334 mm long

1шт.

14

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

Cut to 812 mm long

1шт.

15

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

Cut to 3048 mm long

1шт.

16

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

Cut to 4032 mm long

1шт.

17

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

18

214-1488

HOSE CLAMP,130.05mm - 152.4mm

4шт.

19

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

20

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

16шт.

21

87500119

TUBE

90º 50 mm - vacuum

28шт.
