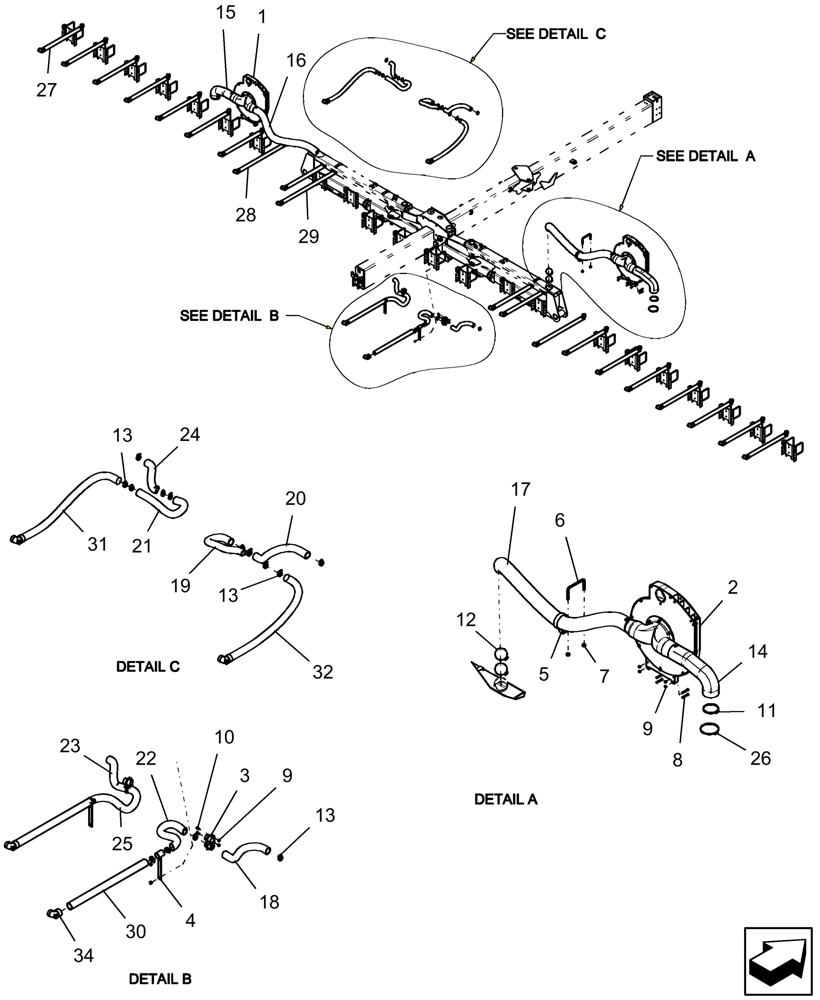

Запчасти Case IH 1250 (75.100.01[02]) - FRAME - VACUUM SYSTEM, STD ROWS - 24 ROW ASN Y9S007001 (75) - SOIL PREPARATION

1

87540686

FAN

assembly vacuum 24 row LH

1шт.

2

87540687

FAN

assembly vacuum 24 row RH

1шт.

3

87541135

BRACKET

dual 2" hose mounting

2шт.

4

87541136

BRACKET

single 2" hose mounting

2шт.

5

84314703

GUIDE

4-1/2" hose

1шт.

6

142583A1

U-BOLT

us 5/8"-11 7"w 4 7/32"d G5 2" thread

1шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

8

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

8шт.

9

247780

SERRATED NUT,Flg, USR, 3/8"-16

12шт.

10

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

11

214-1488

HOSE CLAMP,130.05mm - 152.4mm

4шт.

12

9706924

HOSE CLAMP,103.1mm - 127mm

6шт.

13

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

39шт.

14

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

Cut to 700 mm long

1шт.

15

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

Cut to 700 mm long

1шт.

16

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

Cut to 1730 mm long

1шт.

17

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

Cut to 1730 mm long

1шт.

18

87540742

HOSE,51.82 mm ID x 15240.00 mm Bulk

Wire Helix

1шт.

Cut to 584 mm long

1шт.

19

87540742

HOSE,51.82 mm ID x 15240.00 mm Bulk

Wire Helix

1шт.

Cut to 710 mm long

1шт.

20

87540742

HOSE,51.82 mm ID x 15240.00 mm Bulk

Wire Helix

1шт.

Cut to 584 mm long

1шт.

21

87540742

HOSE,51.82 mm ID x 15240.00 mm Bulk

Wire Helix

1шт.

Cut to 710 mm long

1шт.

22

87540742

HOSE,51.82 mm ID x 15240.00 mm Bulk

Wire Helix

1шт.

Cut to 710 mm long

1шт.

23

87540742

HOSE,51.82 mm ID x 15240.00 mm Bulk

Wire Helix

1шт.

Cut to 260 mm long

1шт.

24

87540742

HOSE,51.82 mm ID x 15240.00 mm Bulk

Wire Helix

1шт.

Cut to 260 mm long

1шт.

25

87540742

HOSE,51.82 mm ID x 15240.00 mm Bulk

Wire Helix

1шт.

Cut to 710 mm long

1шт.

26

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

27

87501726

HOSE

vacuum 2" x 50' bulk

17шт.

Cut to 927 mm long

1шт.

28

87501726

HOSE

vacuum 2" x 50' bulk

2шт.

Cut to 1107 mm long

1шт.

29

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1307 mm long

1шт.

30

87501726

HOSE

vacuum 2" x 50' bulk

2шт.

Cut to 927 mm long

1шт.

31

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1307 mm long

1шт.

32

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1307 mm long

1шт.

34

87500119

TUBE

90º 50 mm - vacuum

24шт.
