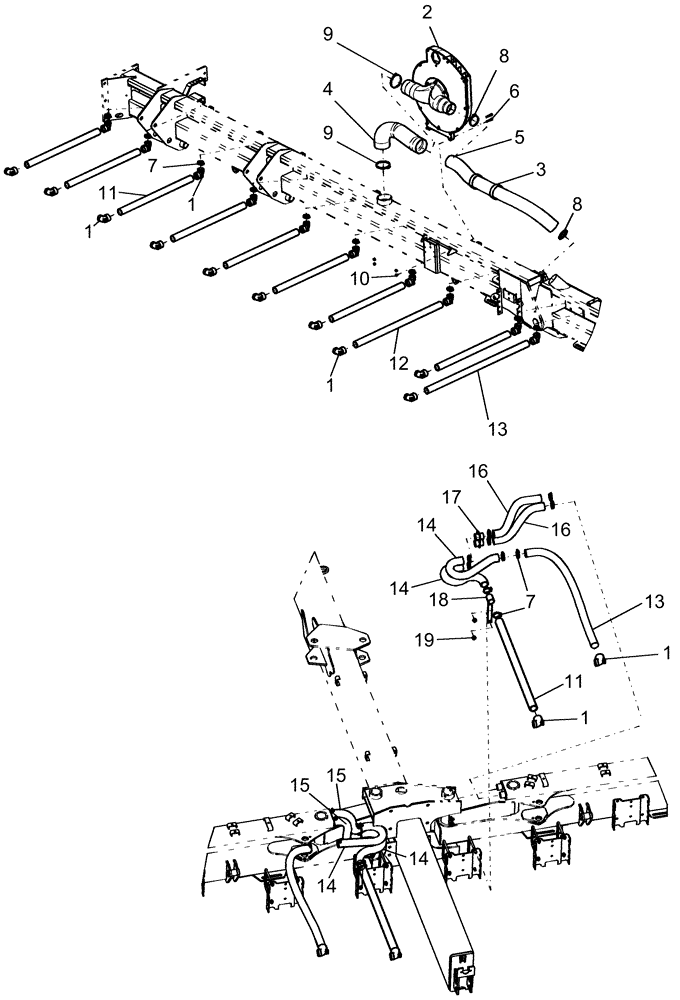

Запчасти Case IH 1250 (75.100.01[01]) - FRAME - VACUUM SYSTEM, STD ROWS - 24 ROW BSN Y9S007001 (75) - SOIL PREPARATION

1

87500119

TUBE

90º 50 mm - vacuum

20шт.

2

87540686

FAN

assembly vacuum 24 row LH

1шт.

2

87540687

FAN

assembly vacuum 24 row RH

1шт.

Not Shown

1шт.

3

87541137

GUIDE

4-1/2" hose

2шт.

4

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

Cut to 570 mm long

1шт.

5

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

Cut to 1730 mm long

1шт.

6

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

7

82012728

COLLAR,50mm - 65mm, Worm Gear

10шт.

8

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

9

214-1488

HOSE CLAMP,130.05mm - 152.4mm

2шт.

10

247780

SERRATED NUT,Flg, USR, 3/8"-16

12шт.

11

87501726

HOSE

vacuum 2" x 50' bulk

10шт.

Cut to 927 mm long

1шт.

12

87501726

HOSE

vacuum 2" x 50' bulk

2шт.

Cut to 1107 mm long

1шт.

13

87501726

HOSE

vacuum 2" x 50' bulk

4шт.

Cut to 1307 mm long

1шт.

14

87501726

HOSE

vacuum 2" x 50' bulk

4шт.

15

87540740

HOSE,51.82 mm ID x 435.00 mm

2" wire helix 260 mm

2шт.

16

87540737

HOSE,51.82 mm ID x 584.00 mm

2" Wire Helix

2шт.

17

87541135

BRACKET

dual 2" hose mounting

2шт.

18

87541136

BRACKET

single 2" hose mounting

2шт.

19

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.
