(55.512.08) - ELECTRICAL - AIR COMPRESSOR HARNESS

Запчасти Case IH 1250 (55.512.08) - ELECTRICAL - AIR COMPRESSOR HARNESS (55) - ELECTRICAL SYSTEMS

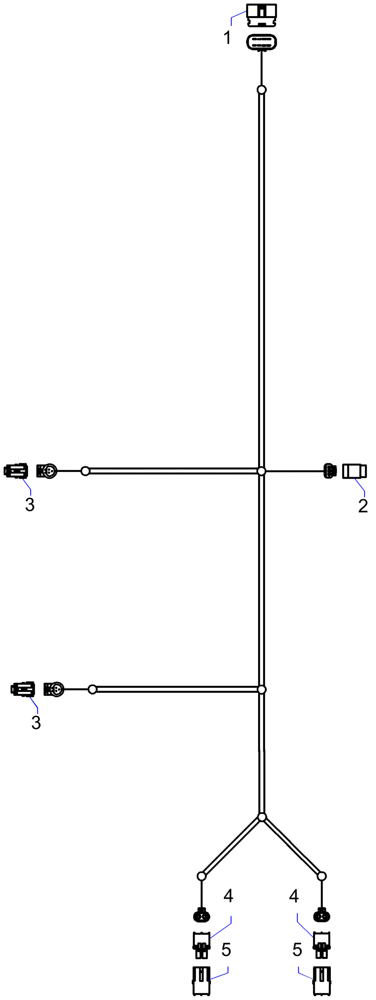

Схема запчастей Case IH 1250 - (55.512.08) - ELECTRICAL - AIR COMPRESSOR HARNESS (55) - ELECTRICAL SYSTEMS
4
3
4
5
2
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87493975

HARNESS

air compressor

1шт.

1

87533278

ELEC CONNECTOR,Male

1шт.

2

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

3

198456A1

ELEC CONNECTOR,Female

3-Way Receptacle ES-A7380

2шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

5

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

2шт.
