(55.424.09) - ELECTRICAL - EARLY RISER IV CONTROL LAYOUT - 16 ROW

Запчасти Case IH 1250 (55.424.09) - ELECTRICAL - EARLY RISER IV CONTROL LAYOUT - 16 ROW (55) - ELECTRICAL SYSTEMS

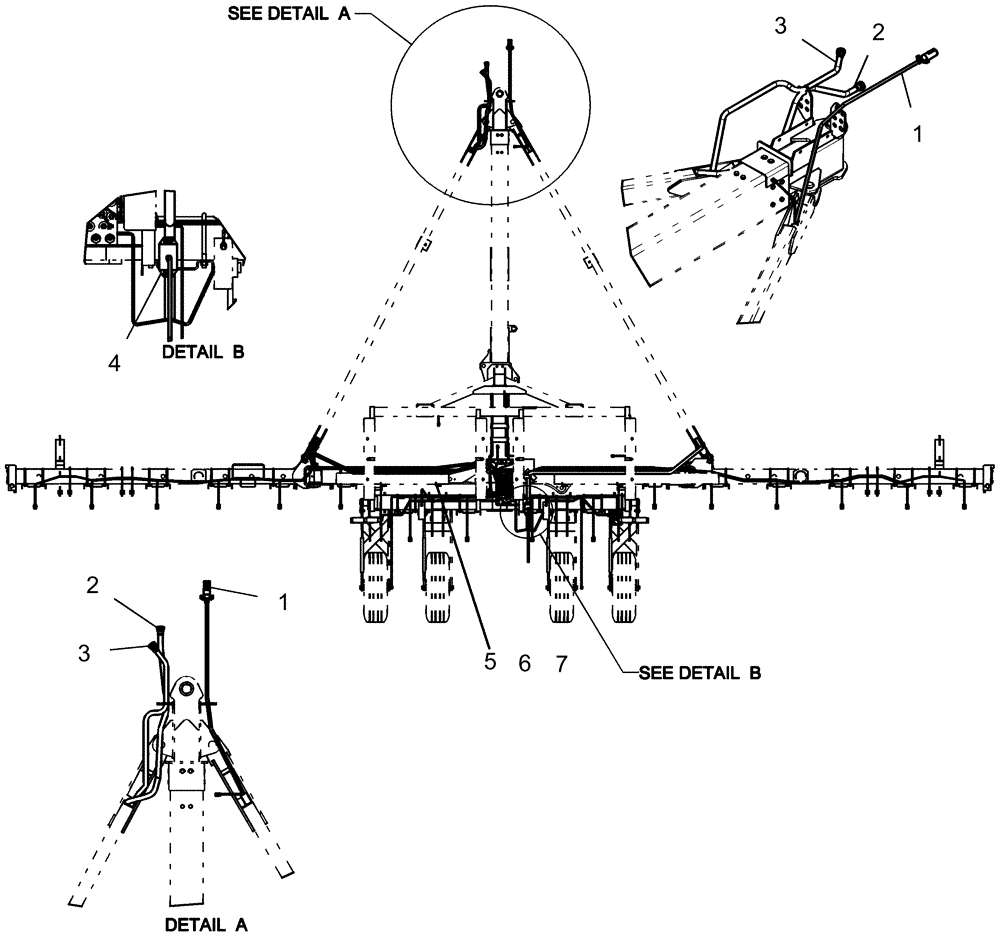

Схема запчастей Case IH 1250 - (55.424.09) - ELECTRICAL - EARLY RISER IV CONTROL LAYOUT - 16 ROW (55) - ELECTRICAL SYSTEMS
4
1
3
7
2
1
2
5
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87749468

HARNESS

12 row and 16 row, lighting, Early Riser IV

1шт.

2

87754996

HARNESS

12 row and 16 row hitch, Early Riser IV

1шт.

3

87754997

HARNESS

toolbar 16 row, Early Riser IV

1шт.

4

86561136

MODULE

implement lighting control

1шт.

5

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

6

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

8

87502039

CABLE TIE

CABLE STRAP (Not Shown)

3шт.
