(55.424.08) - ELECTRICAL - EARLY RISER IV MONITOR LAYOUT

Запчасти Case IH 1250 (55.424.08) - ELECTRICAL - EARLY RISER IV MONITOR LAYOUT (55) - ELECTRICAL SYSTEMS

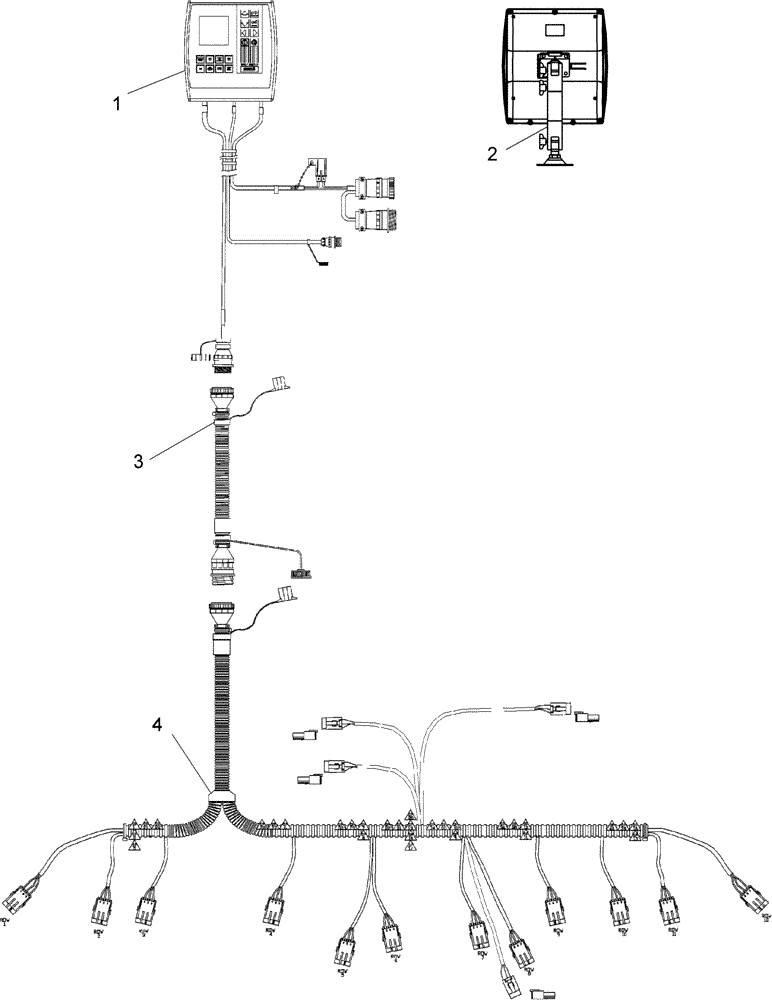

Схема запчастей Case IH 1250 - (55.424.08) - ELECTRICAL - EARLY RISER IV MONITOR LAYOUT (55) - ELECTRICAL SYSTEMS
1
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87483301

MONITOR

Early Riser IV

1шт.

2

87548621

BRACKET

monitor adjustment

1шт.

3

87483305

HARNESS

extension, monitor - fold box

1шт.

Drawbar hitch machines only

1шт.

4

87748407

HARNESS

toolbar, 12 row Early Riser IV

1шт.
