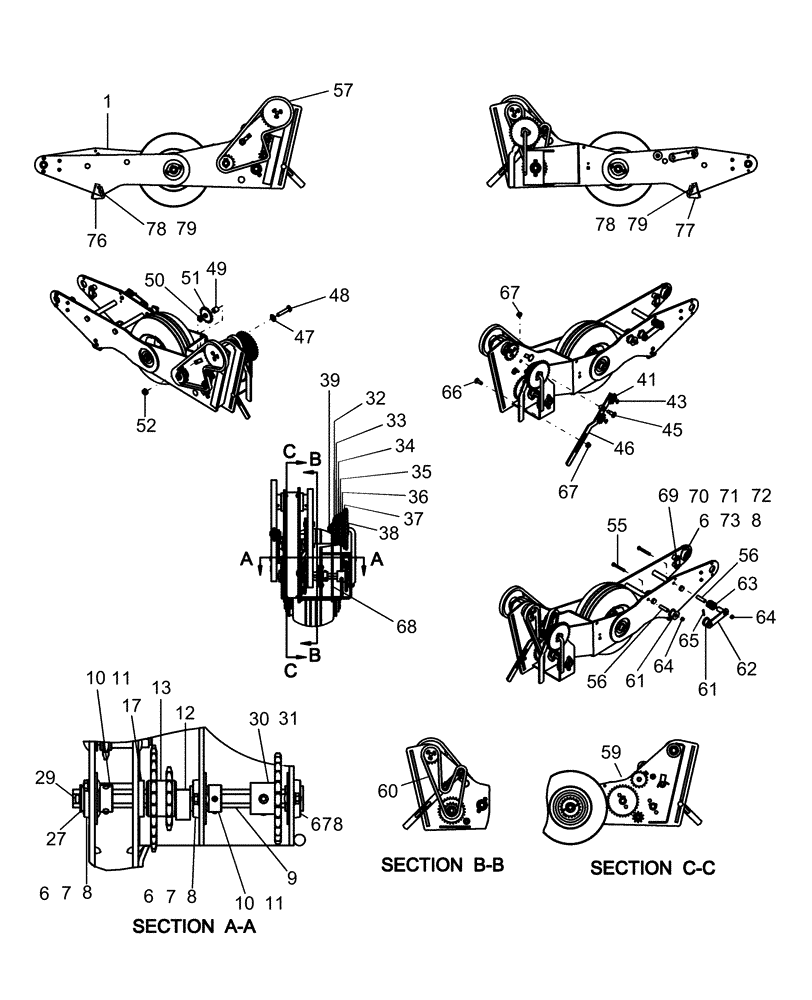

Запчасти Case IH 1250 (21.114.03[02]) - MECHANICAL TRANSMISSION - 24 ROW ASN Y9S007001 (21) - TRANSMISSION

1

87690904

FRAME

mechanical drive, 12 row and 16 row

1шт.

6

87566583

FLANGED BEARING,22.25mm ID

assembly, flangette

8шт.

7

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

14шт.

8

145458

SERRATED NUT,5/16"-18 GR 5 ZND

16шт.

9

87722130

SHAFT

return 7/8" hex x 327.5 mm long

1шт.

10

22224

COLLAR

lock, 7/8" id

3шт.

11

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

6шт.

12

87627709

SPACER

hex sprocket

1шт.

13

87631085

SPROCKET

double, 16T-28T, range selector

1шт.

17

5871

WASHER

1 1/64" id x 2" x 5/16"

2шт.

27

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

3шт.

29

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

4шт.

30

87503169

SPROCKET

24 tooth 50 chain

1шт.

31

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

32

87592206

SPROCKET

quick change 17 tooth

1шт.

33

87592208

SPROCKET

quick change 21 tooth

1шт.

34

87592209

SPROCKET

quick change 23 tooth

1шт.

35

87592210

SPROCKET

quick change 25 tooth

1шт.

36

87592211

SPROCKET

quick change 26 tooth

1шт.

37

87592212

SPROCKET

quick change 31 tooth

1шт.

38

87592213

SPROCKET

quick change 33 tooth

1шт.

39

136-163

HAIR PIN COTTER,Int, 5/16" x .177

1шт.

41

87536428

SPROCKET

50 x 10 idler

5шт.

43

103-1162

SNAP RING,#62, Ext

4шт.

45

87630934

PIN

idler hanger bar

1шт.

46

87707971

ARM

torsion idler

1шт.

47

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

1шт.

48

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

2шт.

49

87671810

SPACER

16.6 mm id x 25.4 mm od x 26.5 mm long

1шт.

50

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

51

103244

SPROCKET

17 tooth

1шт.

52

232-53410

FLANGE NUT

5/8"-11 GG hex flange

2шт.

55

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

2шт.

56

87505783

SLEEVE

tensioner pivot 10.33 mm id x 15.88 mm od x 60 mm long

2шт.

57

87637913

CHAIN

driver

1шт.

59

87637911

CHAIN

reverse

1шт.

60

87637914

CHAIN

driven

1шт.

61

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

62

87550916

TENSIONER

chain

1шт.

63

87505794

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, RH

1шт.

64

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

65

432-1216

COTTER PIN,3/16" x 1"

1шт.

66

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

67

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

68

87629554

ADJUSTING TOOL

torsion

1шт.

69

87722064

WEAR PAD

transmission

2шт.

70

280778

CARRIAGE BOLT

1/4"-20 x 1 3/4", G5

4шт.

71

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

72

87480670

SPACER

1" od x 1/2" id x 0.87" long

4шт.

73

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

76

84249548

BRACKET

Mechanical Transmission Stop LH

1шт.

77

84249551

BRACKET

Mechanical Transmission Stop RH

1шт.

78

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

79

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.
