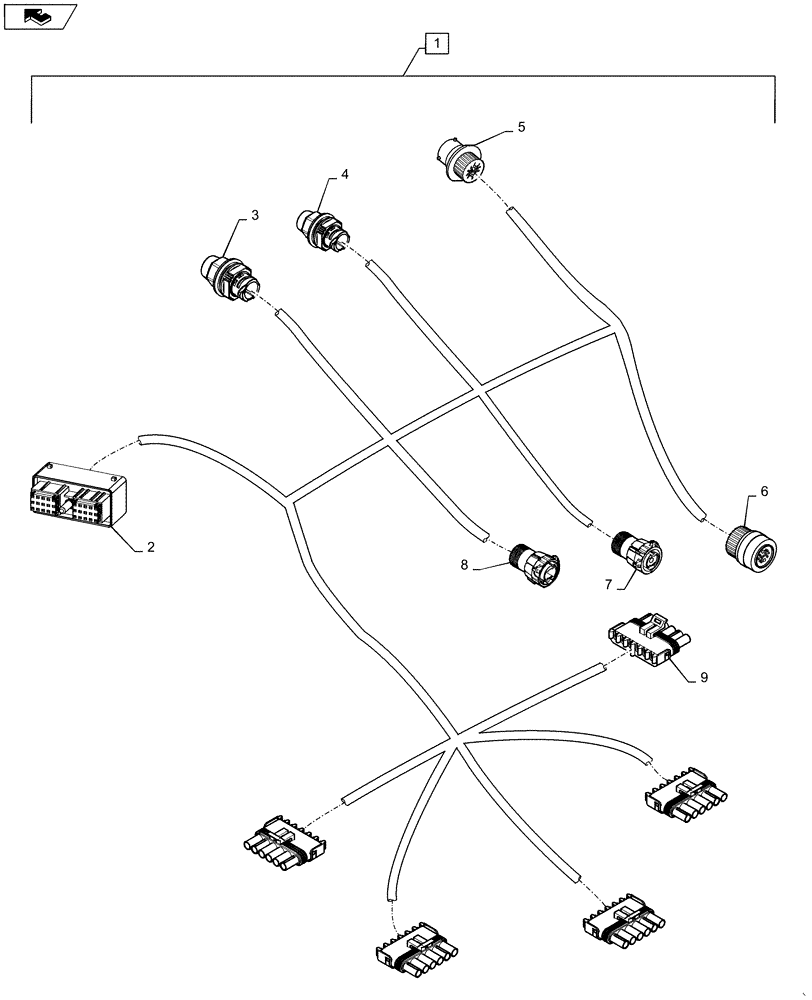

Запчасти Case IH 1250 (55.100.31) - ELECTRICAL - HARNESS 84470455, PT CLUTCH (55) - ELECTRICAL SYSTEMS

1

84470455

WIRE HARNESS

PT Clutch

1шт.

2

84138326

ELEC CONNECTOR

30-Pin, Clutch ECU

1шт.

3

NSS

NOT SOLD SEPARAT

CONNECTOR, 1-Pin, Panel 1

1шт.

4

NSS

NOT SOLD SEPARAT

CONNECTOR, 1-Pin, Panel 2

1шт.

5

NSS

NOT SOLD SEPARAT

CONNECTOR, 15-Pin, Panel 3

1шт.

6

NSS

NOT SOLD SEPARAT

CONNECTOR, 15-Pin, Power Signals

1шт.

7

NSS

NOT SOLD SEPARAT

CONNECTOR, 1-Pin, Panel 2

1шт.

8

NSS

NOT SOLD SEPARAT

CONNECTOR, 1-Pin, Panel 1

1шт.

9

87692879

MULTIPOLE CONNECTOR,Female, 6 Pole

6-Pin

5шт.
