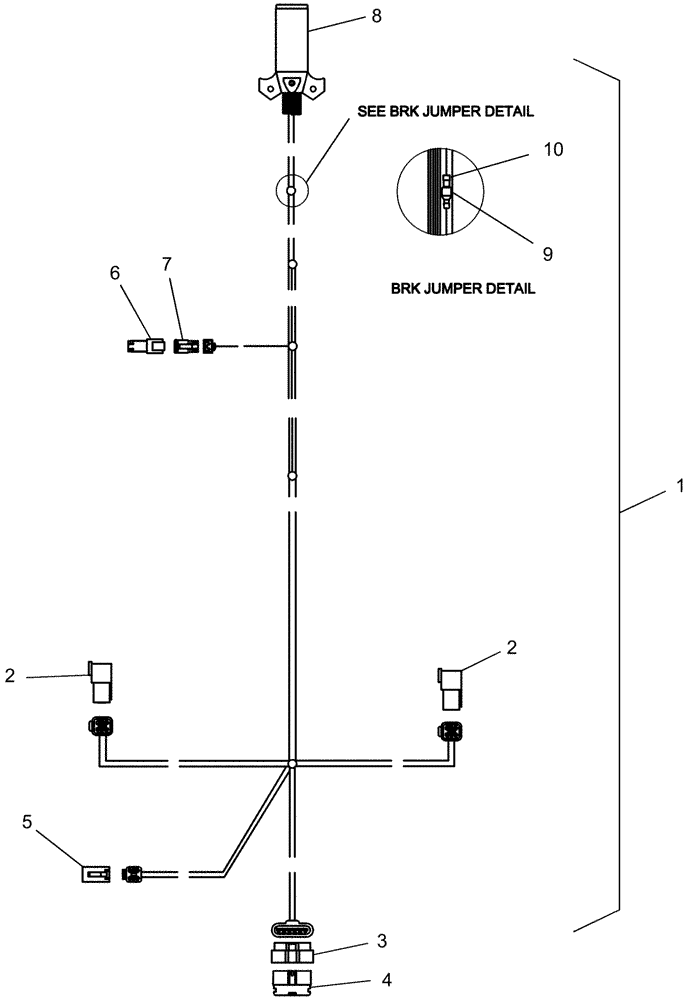

Запчасти Case IH 1250 (55.100.20) - ELECTRICAL - HARNESS 87749468, 12 ROW AND 16 ROW, LIGHTING, EARLY RISER IV (55) - ELECTRICAL SYSTEMS

1

87749468

HARNESS

12 row and 16 row, lighting, Early Riser IV

1шт.

2

280453A1

ELEC CONNECTOR,Male, 6 Pin

Dtm04-6P

2шт.

3

87541127

ELEC CONNECTOR,Female

1шт.

4

87541128

ELEC CONNECTOR,Male

1шт.

5

225351C1

ELEC CONNECTOR,Female, 6 Pin

Plastic 6c Plug

1шт.

6

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

1шт.

7

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

1шт.

8

121646C1

TERMINAL CONNECTOR,Female

metal 7c plug c/w cable protector

1шт.

9

439263A1

TERMINAL CONNECTOR,14 - 16 SAE

disc 14-16awg 1/4"

1шт.

10

225187C1

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

disc 16-14awg .25 m

1шт.
