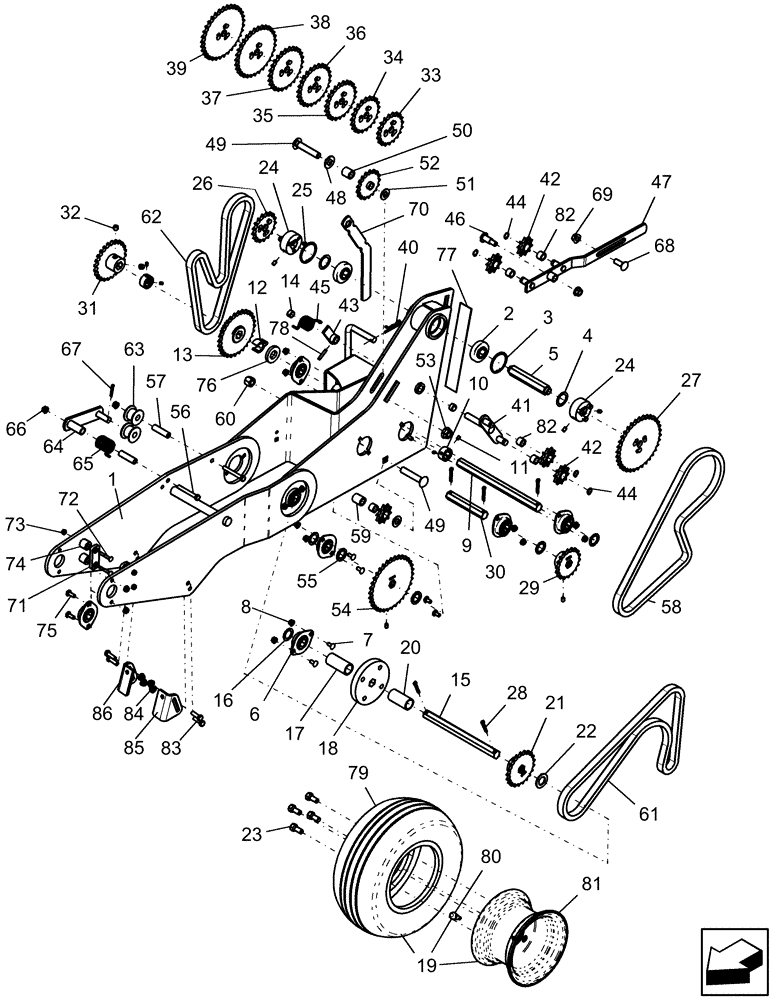

Запчасти Case IH 1250 (21.114.02) - MECHANICAL TRANSMISSION - 12 ROW AND 16 ROW (21) - TRANSMISSION

1

87690904

FRAME

mechanical drive, 12 row and 16 row

1шт.

2

87746596

BALL BEARING,1" ID x 2.44" OD

1" hex bore

2шт.

3

32324

SNAP RING,2.44", Int, #244

2шт.

4

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

2шт.

5

87746552

SHAFT

quick change

1шт.

6

87566583

FLANGED BEARING,22.25mm ID

assembly, flangette

8шт.

7

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

14шт.

8

145458

SERRATED NUT,5/16"-18 GR 5 ZND

16шт.

9

87722130

SHAFT

return 7/8" hex x 327.5 mm long

1шт.

10

22224

COLLAR

lock, 7/8" id

2шт.

11

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

4шт.

12

87627709

SPACER

hex sprocket

1шт.

13

87631085

SPROCKET

double, 16T-28T, range selector

1шт.

14

432594A1

BUSHING

tension 5/8" id x 3/4" od x 1/2" long

2шт.

15

87722128

MAIN SHAFT

7/8" hex x 280 mm

1шт.

16

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

5шт.

17

87637809

SPACER

28.12 mm id x 34.93 mm od x 77 mm long

1шт.

18

87610591

HUB

hex wheel drive

1шт.

19

87610527

TYRE/TIRE

16.5 x 6.5 - 8

1шт.

20

87637808

SPACER

28.12 mm id x 34.93 mm od x 70 mm long

1шт.

21

87610748

SPROCKET

50B21

1шт.

22

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

1шт.

23

198056

WHEEL BOLT,1/2" - 20 x 1.031"

4шт.

24

87746647

HUB

assembly, quick change

2шт.

25

483-1318

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

6шт.

26

87592206

SPROCKET

quick change 17 tooth

1шт.

27

87592214

SPROCKET

quick change 34 tooth

1шт.

28

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

5шт.

29

87610744

SPROCKET

50B18

1шт.

30

87722129

REVERSE SHAFT

7/8" hex x 135 mm long

1шт.

31

87503169

SPROCKET

24 tooth 50 chain

1шт.

32

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

33

87592207

SPROCKET

quick change 19 tooth

1шт.

34

87592208

SPROCKET

quick change 21 tooth

1шт.

35

87592209

SPROCKET

quick change 23 tooth

1шт.

36

87592210

SPROCKET

quick change 25 tooth

1шт.

37

87592211

SPROCKET

quick change 26 tooth

1шт.

38

87592212

SPROCKET

quick change 31 tooth

1шт.

39

87592213

SPROCKET

quick change 33 tooth

1шт.

40

136-163

HAIR PIN COTTER,Int, 5/16" x .177

1шт.

41

87630935

IDLER

LH

1шт.

42

87536428

SPROCKET

50 x 10 idler

5шт.

43

87670722

LOCK

idler

1шт.

44

103-1162

SNAP RING,#62, Ext

4шт.

45

87627065

TORSION SPRING

4 1/4" wid x 26.3 mm id LH

1шт.

46

87630934

PIN

idler hanger bar

1шт.

47

87707971

ARM

torsion idler

1шт.

48

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

1шт.

49

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

2шт.

50

87671810

SPACER

16.6 mm id x 25.4 mm od x 26.5 mm long

1шт.

51

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

52

103244

SPROCKET

17 tooth

1шт.

53

232-53410

FLANGE NUT

5/8"-11 GG hex flange

1шт.

54

87610749

SPROCKET

50B34

1шт.

55

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

56

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

2шт.

57

87505783

SLEEVE

tensioner pivot 10.33 mm id x 15.88 mm od x 60 mm long

2шт.

58

87637913

CHAIN

driver

1шт.

Use 83 Links from 10' roll 1791D plus 1 connecting link 241-1315

1шт.

58

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

roller, #50 (10 foot bulk)

1шт.

58

87034815

LINK,15.88mm Pitch

#50 single pitch

1шт.

59

87629513

SPACER

16.6 mm id x 25.4 mm od x 30.5 mm long

1шт.

60

86639566

NUT,5/8"-11, GB

1шт.

61

87637911

CHAIN

reverse

1шт.

Use 93 Links from 10' roll 1791D plus 1 connecting link 241-1315

1шт.

61

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

roller, #50 (10 foot bulk)

1шт.

61

87034815

LINK,15.88mm Pitch

#50 single pitch

1шт.

62

87637914

CHAIN

driven

1шт.

Use 77 Links from 10' roll 1791D plus 1 connecting link 25195

1шт.

62

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

roller, #50 (10 foot bulk)

1шт.

62

87034815

LINK,15.88mm Pitch

#50 single pitch

1шт.

63

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

64

87550916

TENSIONER

chain

1шт.

65

87505794

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, RH

1шт.

66

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

67

87397

COTTER PIN,3/16" OD x 1" L

1шт.

68

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

69

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

70

87629554

ADJUSTING TOOL

torsion

1шт.

71

87722064

WEAR PAD

transmission

2шт.

72

280778

CARRIAGE BOLT

1/4"-20 x 1 3/4", G5

4шт.

73

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

74

87480670

SPACER

1" od x 1/2" id x 0.87" long

4шт.

75

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

76

5871

WASHER

1 1/64" id x 2" x 5/16"

1шт.

77

87716619

DECAL

transmission operation

1шт.

78

87524

LOCK PIN,6.35mm OD x 34.92mm L, Slotted

1шт.

79

87610523

TYRE/TIRE

16.5 x 6.5 - 8

1шт.

80

87611137

VALVE STEM

TR/413

1шт.

81

87610520

RIM

8 x 5.375 3/4" offset

1шт.

82

395814A1

BUSHING

15.9 mm id x 22.28 od x 15.88 mm long bronze

5шт.

83

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

84

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

85

84249548

BRACKET

Mechanical Transmission Stop LH

1шт.

86

84249551

BRACKET

Mechanical Transmission Stop RH

1шт.
