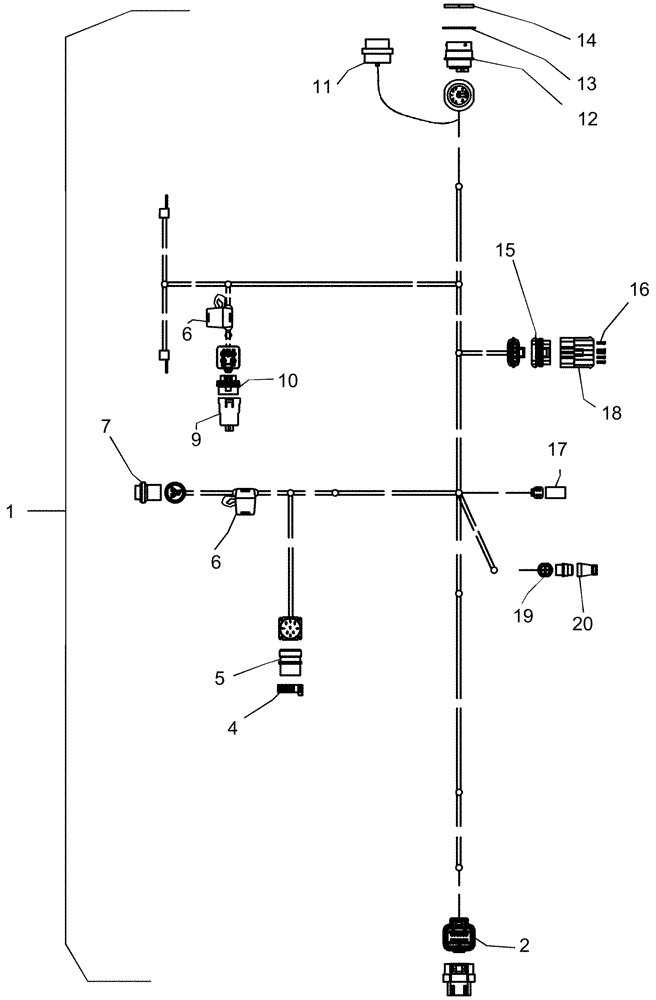

Запчасти Case IH 1250 (55.100.16) - ELECTRICAL - TRACTOR HARNESS 87592009 (55) - ELECTRICAL SYSTEMS

1

87592009

HARNESS

universal tractor, 5.8 m

1шт.

2

87410948

CONTACT HOUSING,Female, 26 Pole

color display

1шт.

4

84074633

COVER

9 cond plg Deutsch

1шт.

5

310057A1

ELEC CONNECTOR,Male, 9 Pin

Deutsch HD10 series Receptacle, Implement Diagnostic

1шт.

6

13972

FUSE HOLDER

inline ato 12awg

2шт.

7

87675194

MULTIPOLE CONNECTOR,Female, 3 Pole

Display Power

1шт.

9

293256A2

RELAY,12V

12v 40 amp weatherproof

1шт.

10

297910A1

ELEC CONNECTOR,Female, 5 Pin

Packard 280 metri-pack, 5-way, Power Relay

1шт.

11

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

12

352506A1

ELEC CONNECTOR,Male, 9 Pin

Implement Connection

1шт.

13

51200012

LOCK WASHER

split 1 3/4" id x 3/32" tk

1шт.

14

459329C1

NUT

1 11/16"-18 aluminum 3/16" thick

1шт.

15

182081A1

TERMINAL CONNECTOR,Female, 5 Pin

Tower 5-way Metri-pak, GPS Receiver

1шт.

16

225127C1

PLUG

cavity, green rubber

5шт.

17

86622300

ELEC CONNECTOR

4-cav Plug DT Series, Used W/284638A1 Terminator

1шт.

18

182079A1

TERMINAL CONNECTOR,Male, 5 Pin

Shroud 5 Way Metri-Pak 280

1шт.

19

247724A1

ELEC CONNECTOR,Female, 4 Pin

Radar

1шт.

20

247725A1

ELEC CONNECTOR

electrical

1шт.
