(55.100.15) - ELECTRICAL - PTO FAN HARNESS 355955A1

Запчасти Case IH 1250 (55.100.15) - ELECTRICAL - PTO FAN HARNESS 355955A1 (55) - ELECTRICAL SYSTEMS

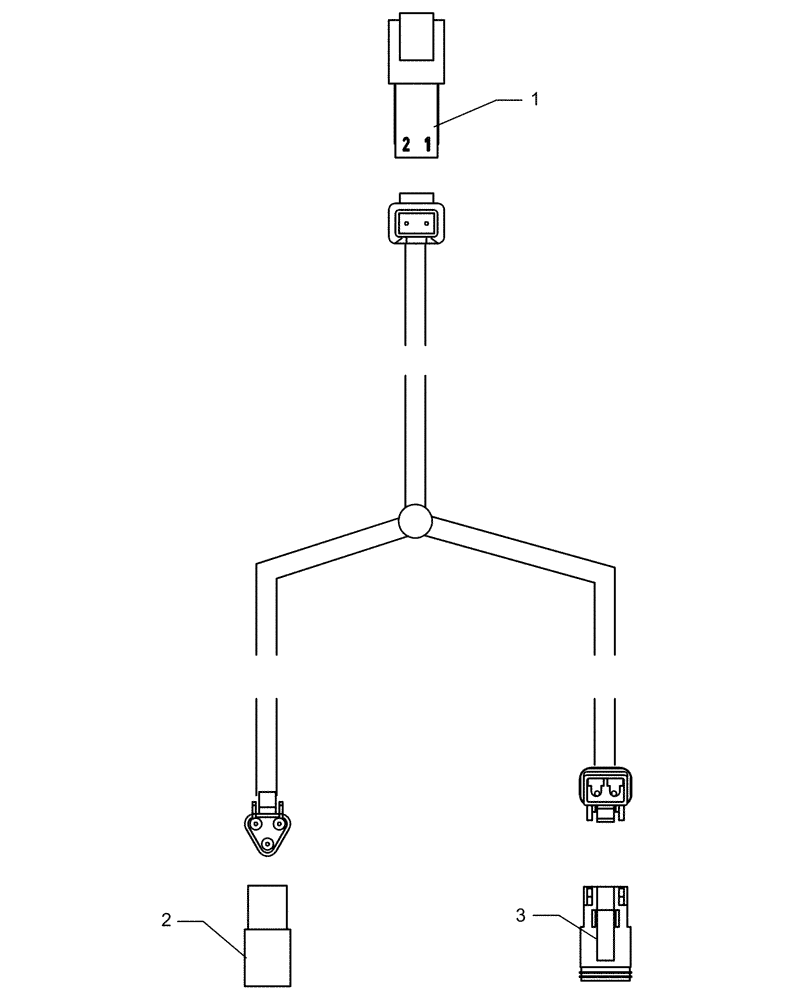

Схема запчастей Case IH 1250 - (55.100.15) - ELECTRICAL - PTO FAN HARNESS 355955A1 (55) - ELECTRICAL SYSTEMS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

355955A1

HARNESS

cyclo cooling

1шт.

1

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

1шт.

2

9842512

ELEC CONNECTOR,Female, 16

3 Junct

1шт.

3

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

1шт.

Выбрано товаров: 0
