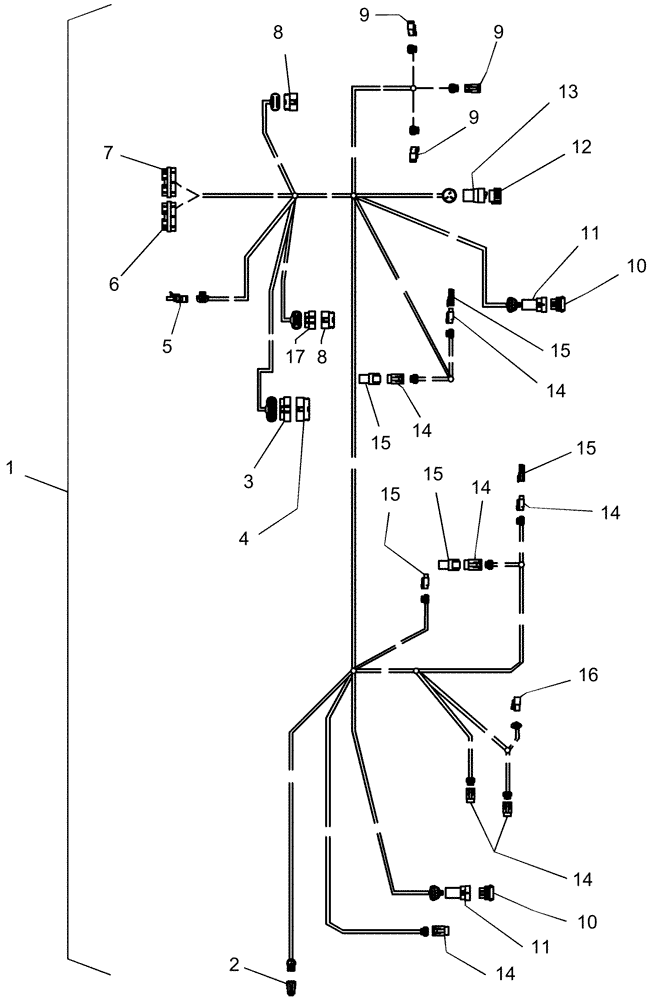

Запчасти Case IH 1250 (55.100.12) - ELECTRICAL - HARNESS, TOOLBAR 87575099 - 12 ROW AND 16 ROW (55) - ELECTRICAL SYSTEMS

1

87575099

HARNESS

toolbar, ISOBUS, Model Year 2011 And Prior

1шт.

1

84211766

WIRE HARNESS

toolbar, ISOBUS, Model Year 2012

1шт.

2

198456A1

ELEC CONNECTOR,Female

3-Way Receptacle ES-A7380

1шт.

3

87541129

ELEC CONNECTOR,Female

1шт.

4

87533279

ELEC CONNECTOR,Male

1шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

6

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

7

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

8

87533278

ELEC CONNECTOR,Male

2шт.

9

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

3шт.

10

296482A1

ELEC CONNECTOR,Female, 5 Pin

Packard 150 series plug

2шт.

11

296483A1

ELEC CONNECTOR,Male, 5 Pin

Packard 150 series receptacle

2шт.

12

225291C1

DUST CAP

calibration switch

1шт.

13

795231

TERMINAL CONNECTOR,Female, 16 SAE

plastic 3c plug

1шт.

14

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

7шт.

15

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

5шт.

16

9842512

ELEC CONNECTOR,Female, 16

3 Junct

1шт.

17

87540289

ELEC CONNECTOR,Female

1шт.
