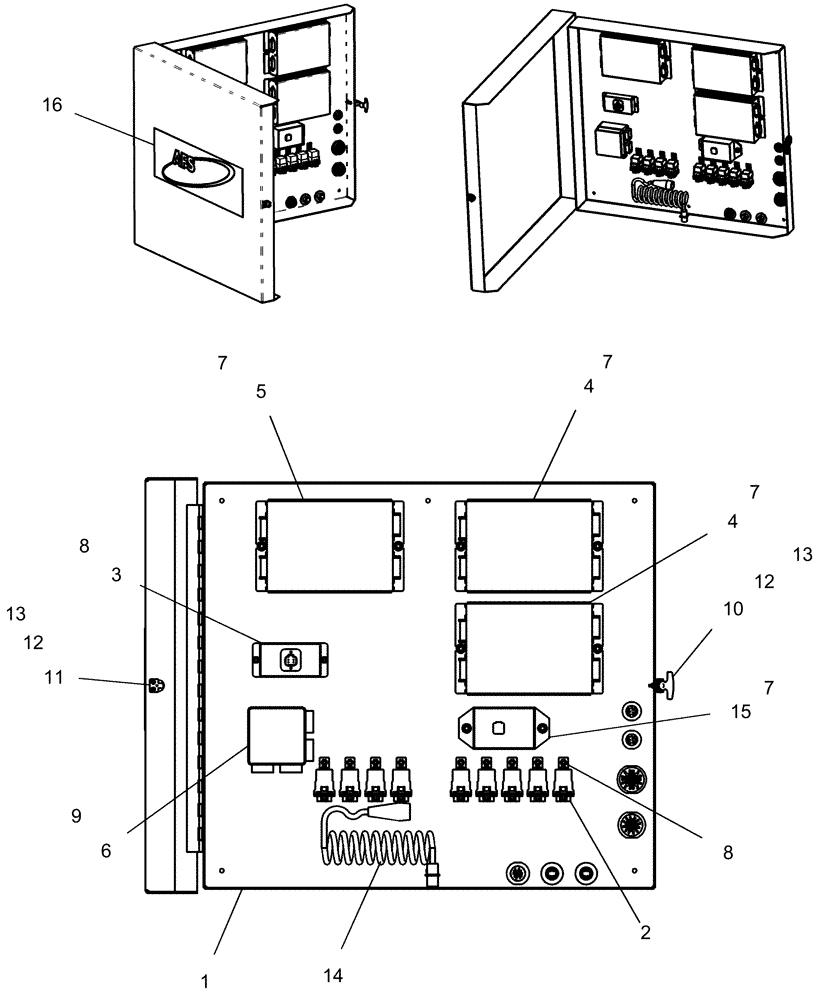

Запчасти Case IH 1250 (55.100.08) - ELECTRICAL - ELECTRONICS MOUNTING - 24 ROW (55) - ELECTRICAL SYSTEMS

1

87500456

PANEL

AFS electronics mounting

1шт.

2

293256A2

RELAY,12V

12v 40 amp weatherproof

1шт.

3

284638A2

ELEC CONNECTOR,4 Pin

terminator, ASM monitor

1шт.

4

405513A1

CONTROL

module, multi channel

2шт.

4

405513A1R

REMAN-MODULE

Module - Multi Channel

2шт.

4

405513A1C

CORE-MODULE

CORE-MODUL Return Number, MODULE

2шт.

5

405514A1

CONTROL

module, monitor interface

1шт.

5

405514A1R

REMAN ELECT CONTROL

1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES, module, monitor interface (1/07-)

1шт.

5

405514A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

451591A1

FUSE BOX

panel

1шт.

7

523282

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

8

87304

NUT,#10-24

11шт.

9

86511925

SCREW,Pan, #10 - 24 x 1 1/2"

4шт.

10

441222A1

LATCH

assembly rubber draw t-handle, SOUTHCO P/N 37-20-07

1шт.

11

441222A1

LATCH

assembly rubber draw t-handle, SOUTHCO P/N 37-20-07

1шт.

12

281007

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1/2"

4шт.

13

88458

NUT,#6 - 32, Gr 5

4шт.

14

1983416C2

SWITCH

calibration

1шт.

15

86561136

MODULE

implement lighting control

1шт.

16

239504A1

DECAL

AFS

1шт.
