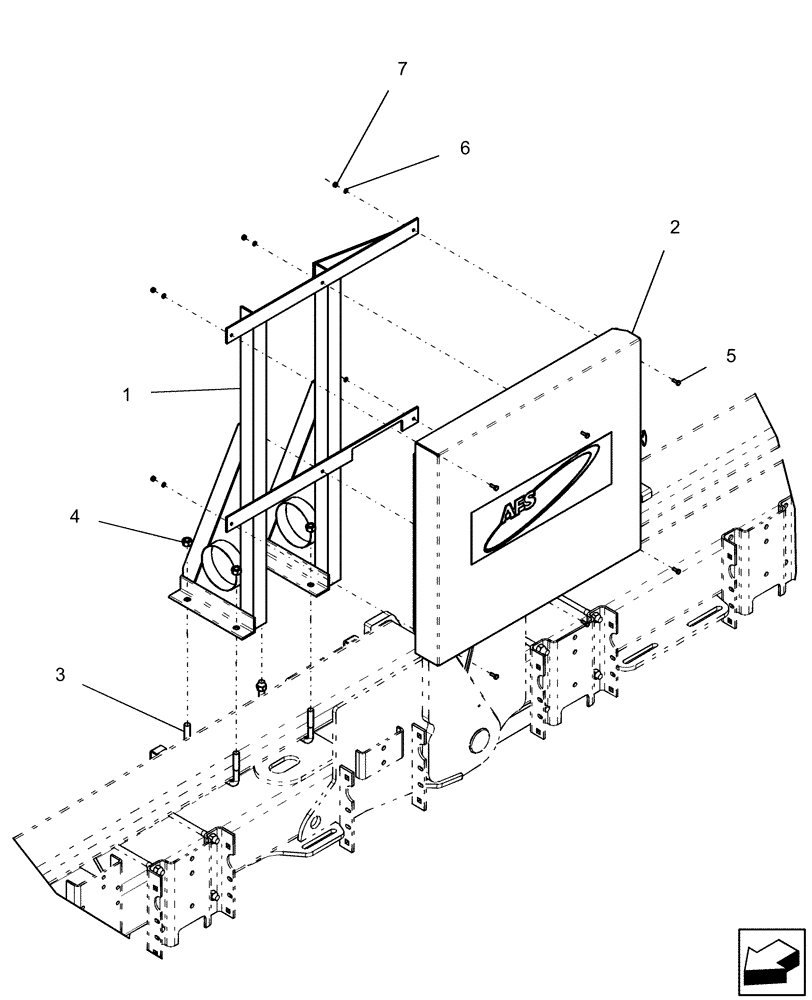

Запчасти Case IH 1250 (55.100.07) - ELECTRICAL - PANEL MOUNTING - 24 ROW (55) - ELECTRICAL SYSTEMS

1

87502876

BRACKET

panel

1шт.

2

87500456

PANEL

AFS electronics mounting

1шт.

3

142583A1

U-BOLT

us 5/8"-11 7"w 4 7/32"d G5 2" thread

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

5

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

6

80682

LOCK WASHER,1/4"

6шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

6шт.
