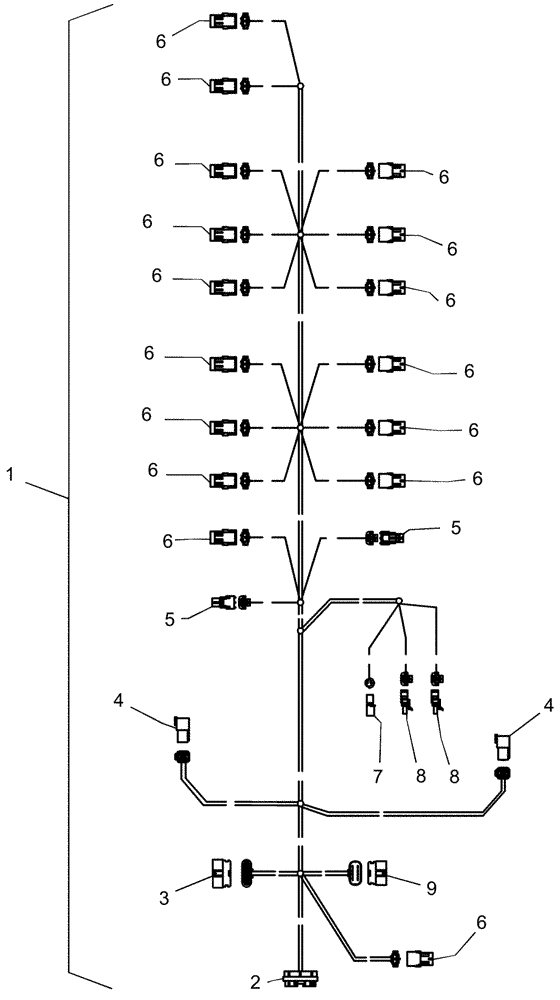

Запчасти Case IH 1250 (55.100.05) - ELECTRICAL - HARNESS, FRAME 87575101 - 12 ROW AND 16 ROW (55) - ELECTRICAL SYSTEMS

1

87575101

HARNESS

frame, ISOBUS, Model Year 2011 And Prior

1шт.

1

84235610

HARNESS

frame, ISOBUS, Model Year 2012

1шт.

2

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

Frame ECU

1шт.

3

87541128

ELEC CONNECTOR,Male

Lighting

1шт.

4

280453A1

ELEC CONNECTOR,Male, 6 Pin

Dtm04-6P

2шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

16шт.

7

1160576C1

ELEC CONNECTOR,Male, 2 Pin

2 contact

1шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

9

87533278

ELEC CONNECTOR,Male

1шт.

10

225127C1

PLUG

cavity, green rubber

12шт.

Not Shown

1шт.

12 Row

1шт.

11

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

6шт.

Not Shown

1шт.

12 Row

1шт.
