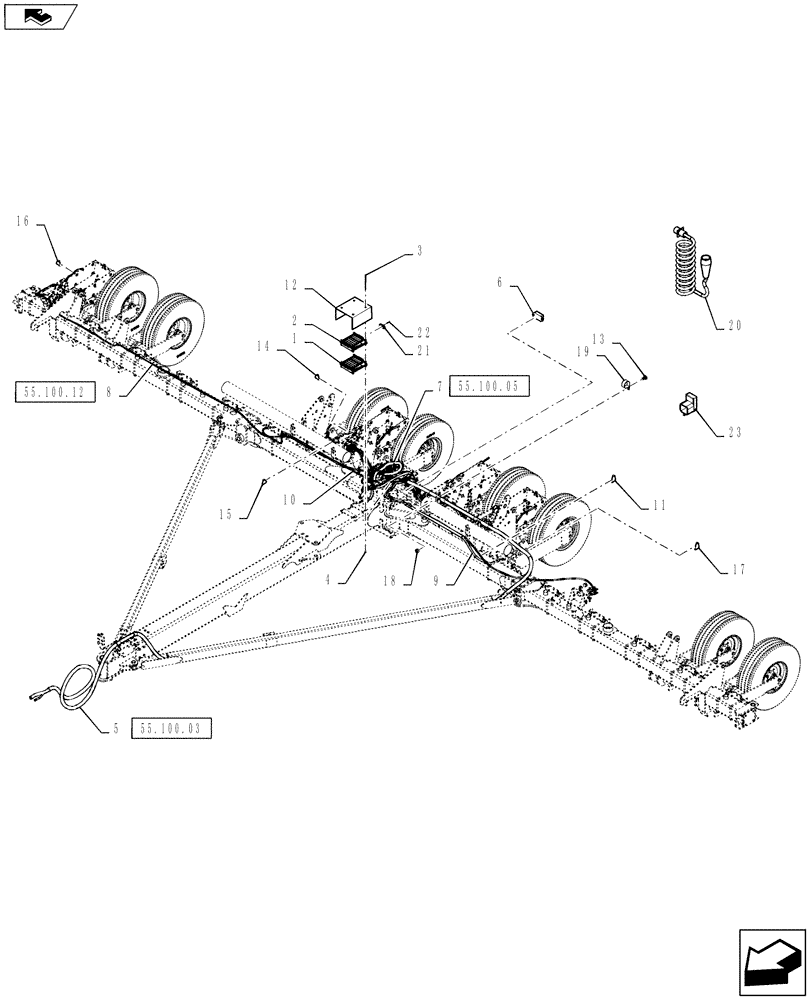

Запчасти Case IH 1250 (55.000.01[02]) - ELECTRICAL - PICTORIAL INDEX, CONTROL AND MONITORING - 16 ROW ASN Y9S007001 (55) - ELECTRICAL SYSTEMS

1

87588171

ECU

rate ISO11783

1шт.

This ECU does not contain any application software and **MUST** be programmed before use.

1шт.

If drop shipping, make arrangements for programming.

1шт.

1

84388675R

REMAN-INSTR CLUSTER

1250 16 ROW ASN Y9S007001 (1/07-), Reman for New PN 87588171

1шт.

84388675C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

87588172

MODULE

frame ISO11783

1шт.

87588172R

REMAN ELECT CONTROL

1250 Front Fold Trailing Planter Early Riser® Series 16 Row ASN Y9S007001 (1/07-)

1шт.

87588172C

CORE-ELECTRONIC CONT

Return Number

1шт.

This ECU does not contain any application software and **MUST** be programmed before use.

1шт.

If drop shipping, make arrangements for programming.

1шт.

3

87752080

BOLT

Hex, 1/4"-20 x 6 1/2" G5

4шт.

4

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

5

87575100

HARNESS

hitch, ISOBUS

1шт.

6

86561136

MODULE

implement lighting control

1шт.

7

87575101

HARNESS

frame, ISOBUS, Model Year 2011 And Prior

1шт.

7

84235610

HARNESS

frame, ISOBUS, Model Year 2012

1шт.

8

87575099

HARNESS

toolbar, ISOBUS, Model Year 2011 And Prior

1шт.

8

84211766

WIRE HARNESS

toolbar, ISOBUS, Model Year 2012

1шт.

9

87398746

SENSOR

seed extension

1шт.

10

87398746

SENSOR

seed extension

1шт.

11

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

6шт.

12

84414988

GUARD

ECU Controller Shield

1шт.

13

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

2шт.

14

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

15

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

16

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

6шт.

17

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

6шт.

18

231-1446

NUT,3/8" - 16, Gr 5

2шт.

19

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

20

1983416C2

SWITCH

calibration

1шт.

21

425269A1

DUST CAP

30 conductor

1шт.

22

470-11016

SCREW,Pan HD, #10 - 24 x 1"

1шт.

23

87601142

ELEC CONNECTOR,Female, 6 Cavities

electronic control unit

1шт.

24

1983416C2

SWITCH

calibration

1шт.
