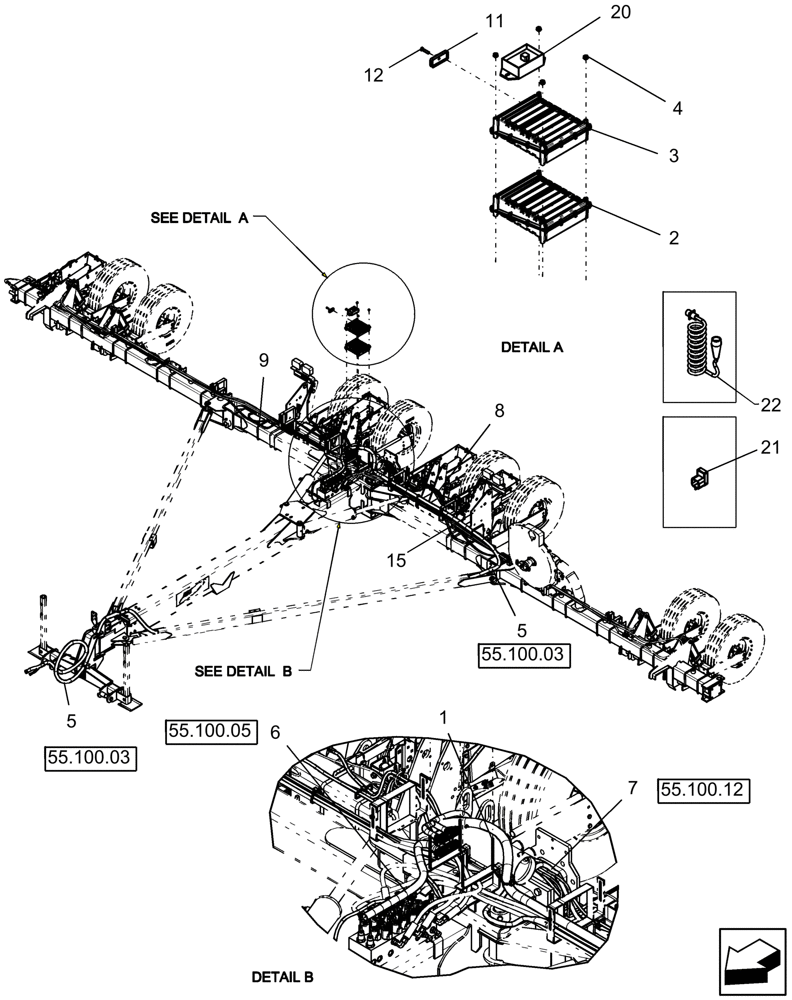

Запчасти Case IH 1250 (55.000.01[01]) - ELECTRICAL - PICTORIAL INDEX, CONTROL AND MONITORING - 16 ROW BSN Y9S007001 (55) - ELECTRICAL SYSTEMS

1

87661859

CARRIAGE BOLT

1/4" x 6 3/4", G5

4шт.

2

87588171

ECU

rate ISO11783

1шт.

This ECU does not contain any application software and **MUST** be programmed before use.

1шт.

If drop shipping, make arrangements for programming.

1шт.

2

84388675R

REMAN-INSTR CLUSTER

1250 16 ROW BSN Y9S007001 (1/07-), Reman for New PN 87588171

1шт.

2

84388675C

CORE-CLUSTER, INSTR

Return Number

1шт.

3

87588172

MODULE

frame ISO11783

1шт.

3

87588172R

REMAN ELECT CONTROL

1250 Front Fold Trailing Planter Early Riser® Series 16 Row BSN Y9S007001 (1/07-)

1шт.

3

87588172C

CORE-ELECTRONIC CONT

Return Number

1шт.

This ECU does not contain any application software and **MUST** be programmed before use.

1шт.

If drop shipping, make arrangements for programming.

1шт.

4

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

5

87575100

HARNESS

hitch, ISOBUS

1шт.

6

87575101

HARNESS

frame, ISOBUS

1шт.

7

87575099

HARNESS

toolbar, ISOBUS

1шт.

8

87398746

SENSOR

seed extension

1шт.

9

87398746

SENSOR

seed extension

1шт.

11

425269A1

DUST CAP

30 conductor

1шт.

12

470-11016

SCREW,Pan HD, #10 - 24 x 1"

1шт.

15

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

23шт.

20

86561136

MODULE

implement lighting control

1шт.

21

87601142

ELEC CONNECTOR,Female, 6 Cavities

electronic control unit

1шт.

22

1983416C2

SWITCH

calibration

1шт.
