(44.520.01) - WHEEL 4 1/2" X 16" - 87604747 ASSEMBLY

Запчасти Case IH 1250 (44.520.01) - WHEEL 4 1/2" X 16" - 87604747 ASSEMBLY (44) - WHEELS

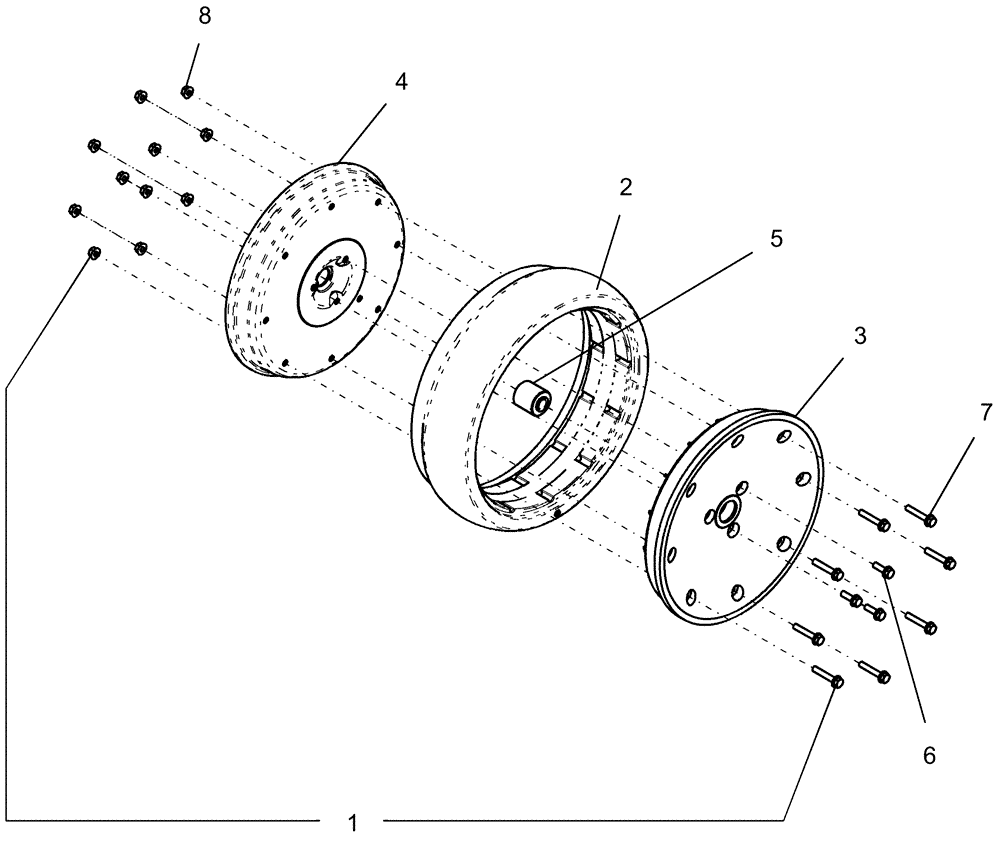

Схема запчастей Case IH 1250 - (44.520.01) - WHEEL 4 1/2" X 16" - 87604747 ASSEMBLY (44) - WHEELS
4
7
2
3
6
8
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87604747

WHEEL ASSY

4.5 X 16 gauge nylon

1шт.

2

87602293

COMPACTOR WHEEL

4.5 x 16 gauge

1шт.

3

87604021

WHEEL DISC

black nylon half, 16" cleaner wheel

1шт.

4

87604612

WHEEL

black steel half, 16" cleaner wheel

1шт.

5

324461A1

BALL BEARING

16 mm bore x 40 mm wide

1шт.

6

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

7

86609280

BOLT,Hex Flg, M8 x 45mm, Cl 8.8

8шт.

8

86050303

NUT

M8 x 1.25, Flg, Cl 8

11шт.
