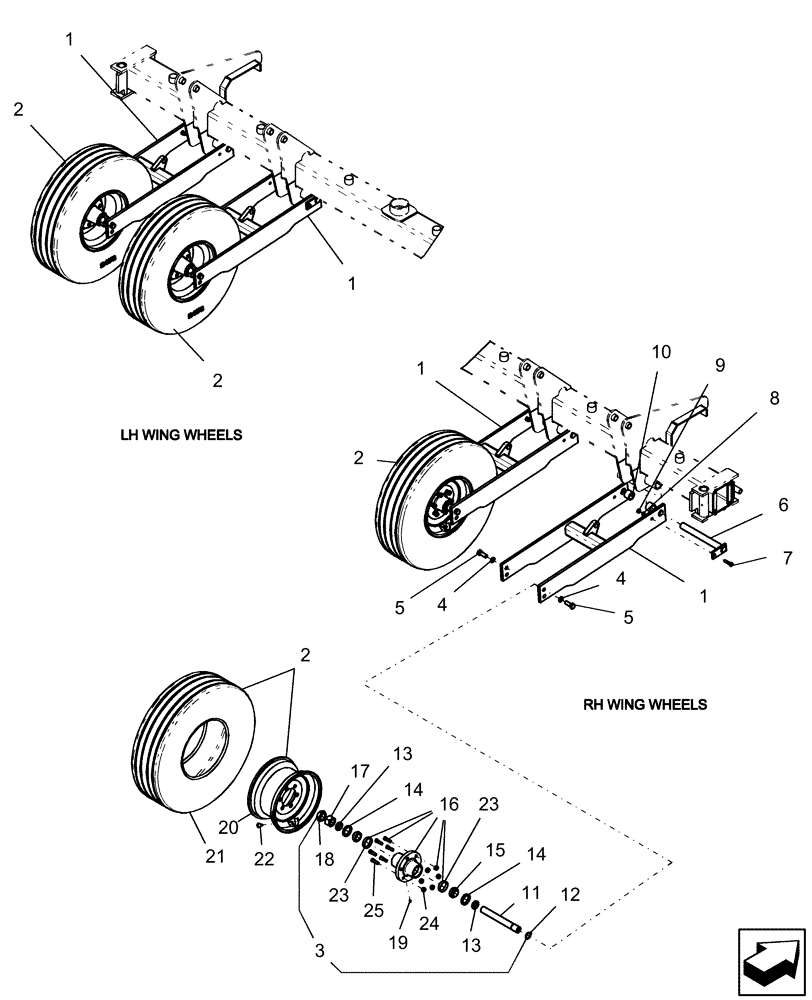

Запчасти Case IH 1250 (44.100.05) - WHEEL, STANDARD WING - 16 ROW (44) - WHEELS

1

87659644

FRAME

wing wheel, Serial Range: -Y9S007001

4шт.

1

84126433

FRAME

wing wheel, Start Serial: Y9S007001

4шт.

2

87503292

WHEEL ASSY

10.0 - 15 SL8, Serial Range: -Y9S007001

4шт.

2

84143059

WHEEL ASSY

10.00-15 FI, Start Serial: Y9S007001

4шт.

3

87504573

HUB

wing gauge wheel

4шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

8шт.

5

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

6

87632193

PIVOT PIN

wing wheel

4шт.

7

281058

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

9

87530607

NUT

4шт.

10

87503066

BUSHING,38.29mm ID x 50.93mm OD x 37.35mm L

polylube 2" od x 1 1/2" id

8шт.

11

87504571

SPINDLE

wing wheel

4шт.

12

86632531

SNAP RING,#150, Ext

4шт.

13

87504574

SPACER

tube

8шт.

14

36060

OIL SEAL,53.19mm ID x 69.19mm OD x 9.53mm Thk

SE24

8шт.

15

72012

BEARING CONE

#LM13686

8шт.

16

87505491

HUB

H617-1 assembly with cups and studs and nuts

4шт.

17

425-1024

NUT,1 1/2"-6, G5

4шт.

18

8337

JAM NUT

jam 1 1/2"-6

4шт.

19

87414

LUBE NIPPLE,1/4" - 28

4шт.

20

87505456

RIM

15" x 8" - 6 hole

4шт.

21

87503293

TYRE/TIRE

10.0 - 15 SL TL 8PLY, Serial Range: -Y9S007001

4шт.

21

87628282

TYRE/TIRE

10-15FI highway implement, Start Serial: Y9S007001

4шт.

22

196033

VALVE STEM

tr/415

4шт.

23

72062

BEARING CUP,69.04mm OD x 15.08mm W

#13621

8шт.

24

F23214

WHEEL NUT

hub wheel - h517 & h617

24шт.

25

1662

BOLT

stud 1/2"-20 G5 wb16

24шт.
