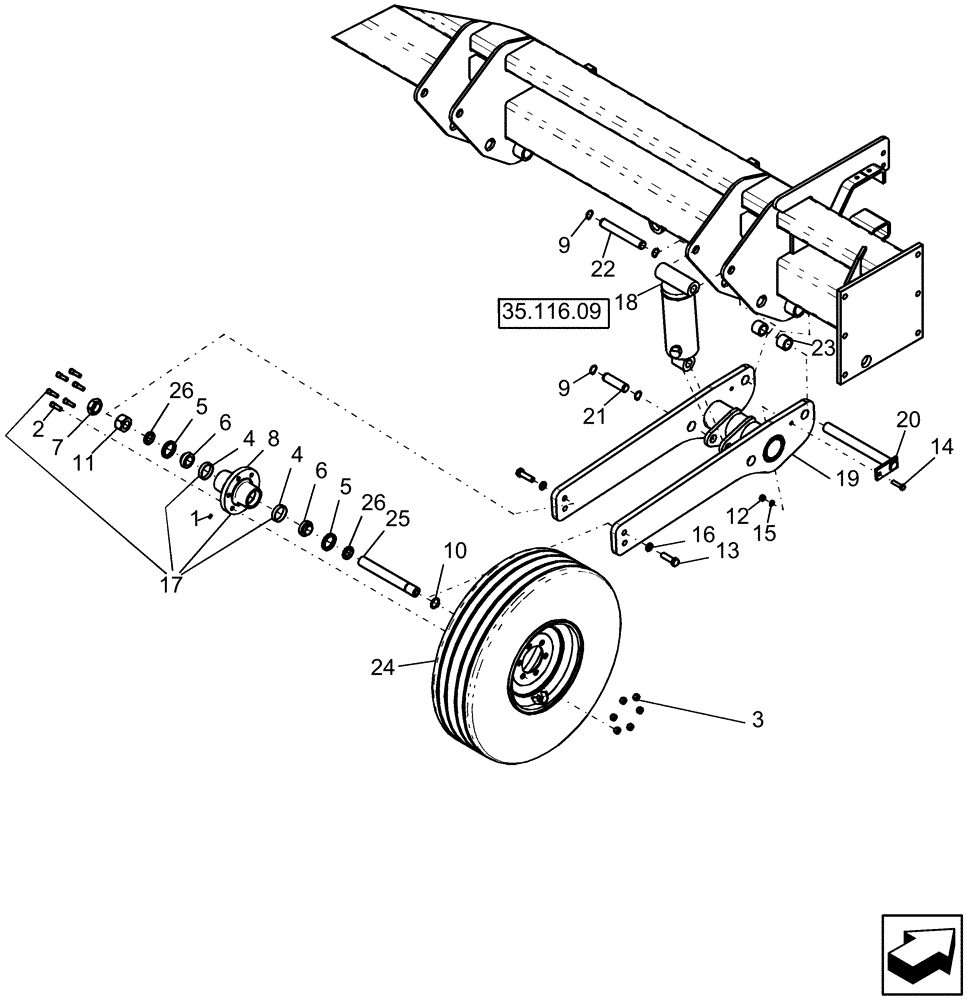

Запчасти Case IH 1250 (44.100.04) - WHEEL, STANDARD WING - 24 ROW (44) - WHEELS

1

87414

LUBE NIPPLE,1/4" - 28

1шт.

2

1662

BOLT

stud 1/2"-20 G5 wb16

6шт.

3

F23214

WHEEL NUT

hub wheel - h517 & h617

6шт.

4

72062

BEARING CUP,69.04mm OD x 15.08mm W

#13621

2шт.

5

36060

OIL SEAL,53.19mm ID x 69.19mm OD x 9.53mm Thk

SE24

2шт.

6

72012

BEARING CONE

#LM13686

2шт.

7

8337

JAM NUT

jam 1 1/2"-6

1шт.

8

87505491

HUB

H617-1 assembly with cups and studs and nuts

1шт.

9

103-11125

SNAP RING,#125, Ext

4шт.

10

86632531

SNAP RING,#150, Ext

1шт.

11

425-1024

NUT,1 1/2"-6, G5

1шт.

12

87530607

NUT

1шт.

13

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

14

20987

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

16

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

17

87505491

HUB

H617-1 assembly with cups and studs and nuts

1шт.

18

87462743

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 175.26mm Stroke

4 1/4" x 6 7/8" slave

1шт.

19

87546011

WHEEL

wing standard

2шт.

20

87503050

PIN

center wheel pivot

1шт.

21

87503056

PIN

cylinder anchor 31.75 mm x 104 mm

1шт.

22

87503057

PIN

cylinder anchor 31.75 mm x 215 mm

1шт.

23

87503066

BUSHING,38.29mm ID x 50.93mm OD x 37.35mm L

polylube 2" od x 1 1/2" id

2шт.

24

87503292

WHEEL ASSY

10.0 - 15 SL8

1шт.

25

87504571

SPINDLE

wing wheel

1шт.

24

87505456

RIM

15" x 8" - 6 hole

1шт.

26

87504574

SPACER

tube

2шт.

24

87503293

TYRE/TIRE

10.0 - 15 SL TL 8PLY

1шт.

24

196033

VALVE STEM

tr/415

1шт.
