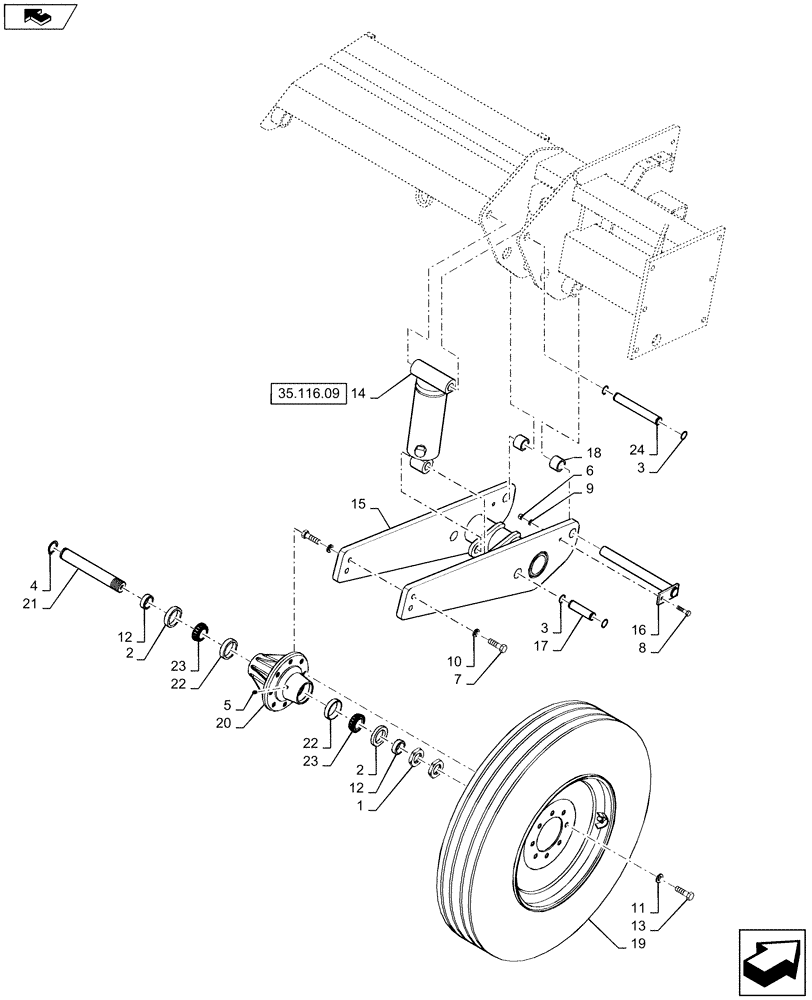

Запчасти Case IH 1250 (44.100.03) - WHEEL, HIGH FLOATATION WING - 24 ROW (44) - WHEELS

1

87504483

NUT

1 3/4"-12, G5

2шт.

2

6494

OIL SEAL

SE26 H-820 hub

2шт.

3

103-11125

SNAP RING,#125, Ext

4шт.

4

86625149

SNAP RING,#175, Ext

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

1шт.

6

87530607

NUT

1шт.

7

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

8

20987

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

10

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

11

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

8шт.

12

6497

SPACER

ring, hda-820 hub

2шт.

13

87362752

BOLT

5/8"-18 x 2", G5

8шт.

14

87462743

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 175.26mm Stroke

4 1/4" x 6 7/8" slave

1шт.

15

87546013

BRACKET

wing high float standard

1шт.

16

87503050

PIN

center wheel pivot

1шт.

17

87503056

PIN

cylinder anchor 31.75 mm x 104 mm

1шт.

18

87503066

BUSHING,38.29mm ID x 50.93mm OD x 37.35mm L

polylube 2" od x 1 1/2" id

2шт.

19

84148715

WHEEL ASSY

11R22.5, Start Serial: Y9S007001

2шт.

19

87503291

TYRE/TIRE

11 - 22.5 TL LRF 12 ply, bias ply, Serial Range: -Y9S007001

2шт.

19

84148722

TYRE/TIRE

11R22.5 LR G, Start Serial: Y9S007001

2шт.

19

87503295

RIM

22.5 2 X 8.25

2шт.

19

196033

VALVE STEM

tr/415

2шт.

20

87567186

HUB

8-bolt assembly with cups

1шт.

21

87504474

SPINDLE

HD-820

1шт.

22

86900365

BEARING CUP,82.96mm OD x 19.05mm W

#25520

2шт.

23

13540

BEARING CONE,44.45mm ID x 25.4mm W

25880

2шт.

24

87503057

PIN

cylinder anchor

1шт.
