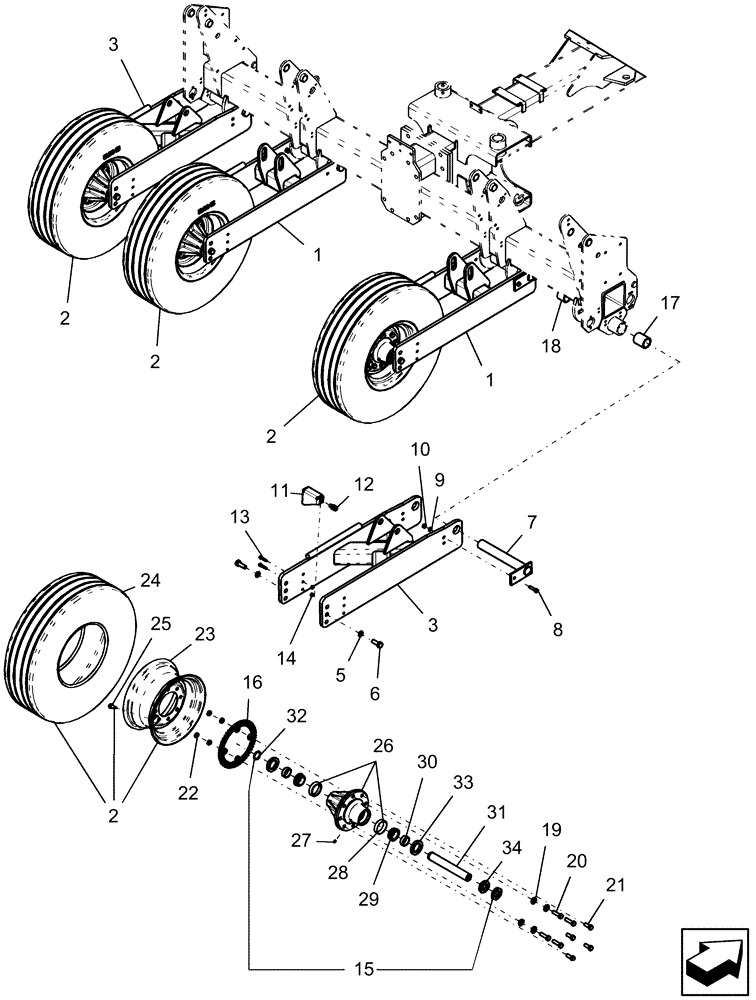

Запчасти Case IH 1250 (44.100.02[02]) - WHEEL, CENTER - 12 ROW AND 16 ROW ASN Y9S007001 (44) - WHEELS

1

84124242

FRAME

inner wheel

2шт.

2

87648234

WHEEL ASSY

10.00-15FI load range

4шт.

3

84123710

FRAME

outer center

2шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

8шт.

6

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

7

87503053

PIN

center wheel pivot

4шт.

8

281058

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

10

280431

NUT,1/2"-13, G5

4шт.

11

87715910

BRACKET

wheel speed sensor

1шт.

12

324049A1

SENSOR

speed hall

1шт.

13

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

15

NSS

NOT SOLD SEPARAT

Hub assembly complete

4шт.

16

87650710

SPROCKET

50 tooth

1шт.

17

87503067

BUSHING

polylube 2 1/2" od x 2" id x 3" long

2шт.

18

87632788

BUSHING

polylube 2 1/2" od x 2" id x 2" long

6шт.

19

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

8шт.

20

87477175

BOLT

5/8"-18 x 2 1/4" G5, Full Thd

8шт.

21

87682780

BOLT

5/8"-18 x 1 3/8" wheel, G5

24шт.

22

425-1510

JAM NUT,Jam, 5/8"-18, G5

4шт.

23

87659658

WHEEL

15 X 8 bolt +1.0 offset

4шт.

24

NSS

NOT SOLD SEPARAT

TIRE 10-15FI highway implement

4шт.

25

196033

VALVE STEM

tr/415

4шт.

26

87567186

HUB

8-bolt assembly with cups

4шт.

27

87414

LUBE NIPPLE,1/4" - 28

4шт.

28

86900365

BEARING CUP,82.96mm OD x 19.05mm W

#25520

8шт.

29

13540

BEARING CONE,44.45mm ID x 25.4mm W

25880

8шт.

30

6497

SPACER

ring, hda-820 hub

8шт.

31

87504474

SPINDLE

HD-820

4шт.

32

86625149

SNAP RING,#175, Ext

4шт.

33

6494

OIL SEAL

SE26 H-820 hub

8шт.

34

87504483

NUT

1 3/4"-12, G5

8шт.

35

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

Not Shown - for use with sensor 324049A1

1шт.
