(05.400.01) - SHIPPING STANDS AND CYLINDER LOCKS - 24 ROW

Запчасти Case IH 1250 (05.400.01) - SHIPPING STANDS AND CYLINDER LOCKS - 24 ROW (05) - SERVICE & MAINTENANCE

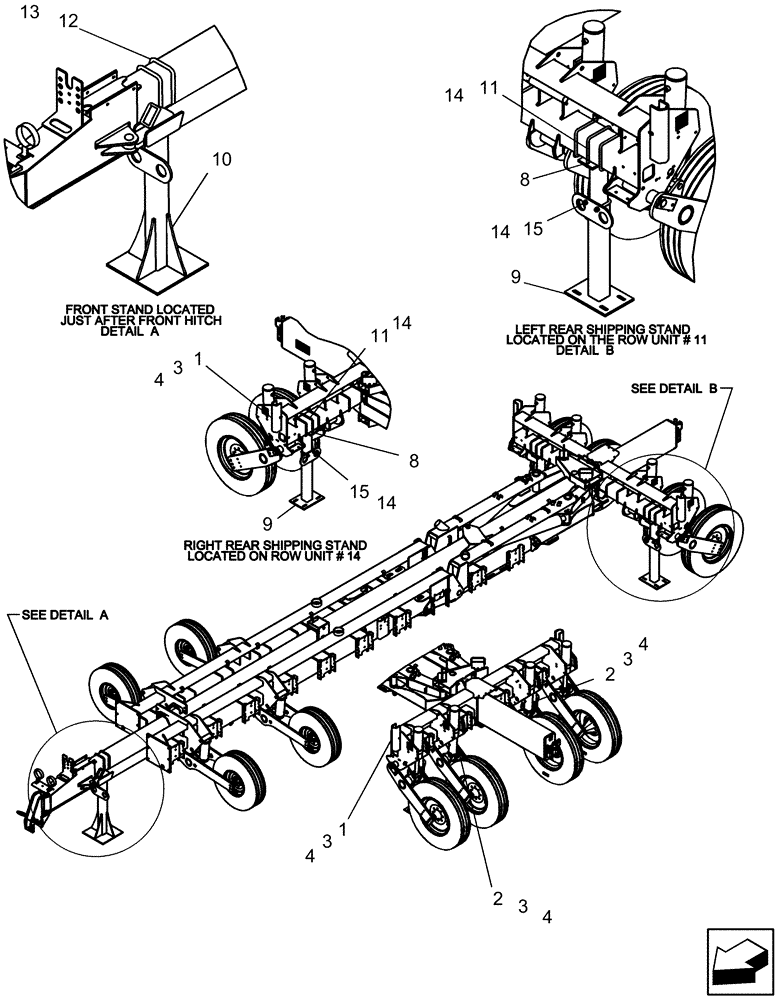

Схема запчастей Case IH 1250 - (05.400.01) - SHIPPING STANDS AND CYLINDER LOCKS - 24 ROW (05) - SERVICE & MAINTENANCE
14
14
11
3
8
15
14
4
4
9
2
3
1
9
14
1
10
3
4
2
4
11
13
8
12
15
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87548605

CHANNEL

Road cylinder lock

2шт.

2

87548606

CHANNEL

Shipping cylinder lock

2шт.

3

84499055

HEADED PIN,12.7mm OD x 107.95mm L

4шт.

4

86624096

COTTER PIN,Int, 3/16 x .080"

4шт.

8

87576266

STAND

support shipping

2шт.

9

87576270

STAND

shipping, adjustable

2шт.

10

87583682

STAND

shipping

1шт.

11

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

12

87502980

U-BOLT

3/4" x 6 1/8" x 15 3/4"

2шт.

13

280954

NUT,3/4"-10, G5

4шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

15

437634A1

U-BOLT

BOLT "U" us 5/8"-11 x 3.46 wide x 5.51 deep, G5

2шт.
