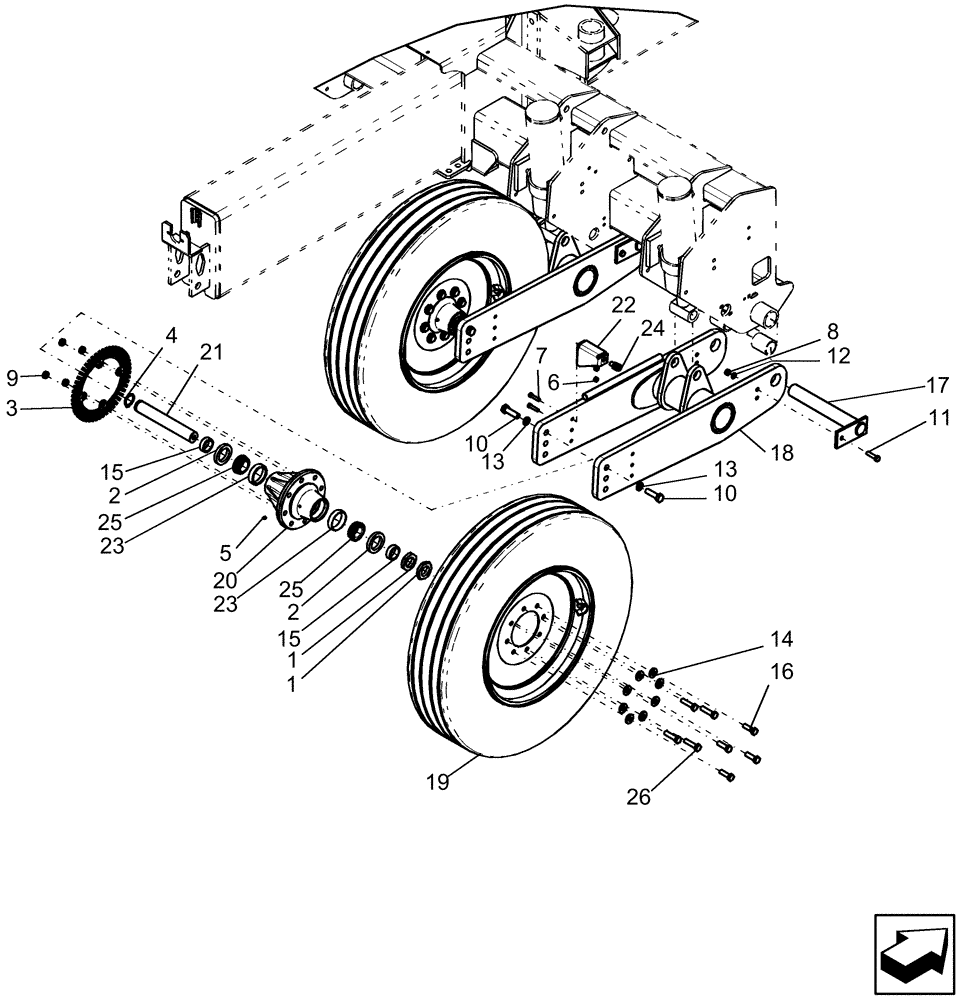

Запчасти Case IH 1250 (44.100.01) - WHEEL, CENTER - 24 ROW (44) - WHEELS
№
Артикул
Название
Примечание
Количество
1
87504483
NUT
1 3/4"-12, G5
4шт.
2
6494
OIL SEAL
SE26 H-820 hub
4шт.
3
87504471
SPROCKET
LC 50 tooth, Serial Range: -Y7S007045
2шт.
3
87659530
SPROCKET
LC 50 tooth, Start Serial: Y8S007001
2шт.
6
87039402
NUT,3/8"-16, GB
, Serial Range: -Y7S007045
4шт.
6
86521606
FLANGE NUT,Hex, 3/8" - 16, Gr 5
, Start Serial: Y8S007001
4шт.
7
9706689
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
4шт.
8
87530607
NUT
2шт.
9
425-1510
JAM NUT,Jam, 5/8"-18, G5
8шт.
10
281074
BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8
4шт.
11
20987
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8
2шт.
12
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
13
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
4шт.
14
86624156
WASHER,0.66" ID x 1.5" OD x 0.19" Thk
16шт.
15
6497
SPACER
ring, hda-820 hub
4шт.
16
87362752
BOLT
5/8"-18 x 2", G5
8шт.
17
87503053
PIN
center wheel pivot
2шт.
18
87546007
BRACKET
outer center LH
1шт.
Not Shown
1шт.
18
87546006
BRACKET
outer center RH
1шт.
19
87503290
WHEEL ASSY
11-22.5, Serial Range: -Y9S007001
2шт.
19
84148715
WHEEL ASSY
11R22.5, Start Serial: Y9S007001
2шт.
19
87503291
TYRE/TIRE
11 - 22.5 TL LRF 12 ply, bias ply, Serial Range: -Y9S007001
2шт.
19
84148722
TYRE/TIRE
11R22.5 LR G, Start Serial: Y9S007001
2шт.
19
87503295
RIM
22.5 2 X 8.25
2шт.
19
196033
VALVE STEM
tr/415
2шт.
20
87567186
HUB
8-bolt assembly with cups
2шт.
21
87504474
SPINDLE
HD-820
2шт.
22
87547767
BRACKET
wheel speed sensor, Serial Range: -Y7S007045
2шт.
22
87715910
BRACKET
wheel speed sensor, Start Serial: Y8S007001
2шт.
23
86900365
BEARING CUP,82.96mm OD x 19.05mm W
#25520
4шт.
24
324049A1
SENSOR
speed hall
2шт.
25
13540
BEARING CONE,44.45mm ID x 25.4mm W
25880
4шт.
26
87362753
BOLT
5/8"-18 x 2 1/2", G5
4шт.
27
86977690
LOCK WASHER,Ext Tooth, 5/8"
2шт.
Not Shown - for use with sensor 324049A1
1шт.
Выбрано товаров: 38
