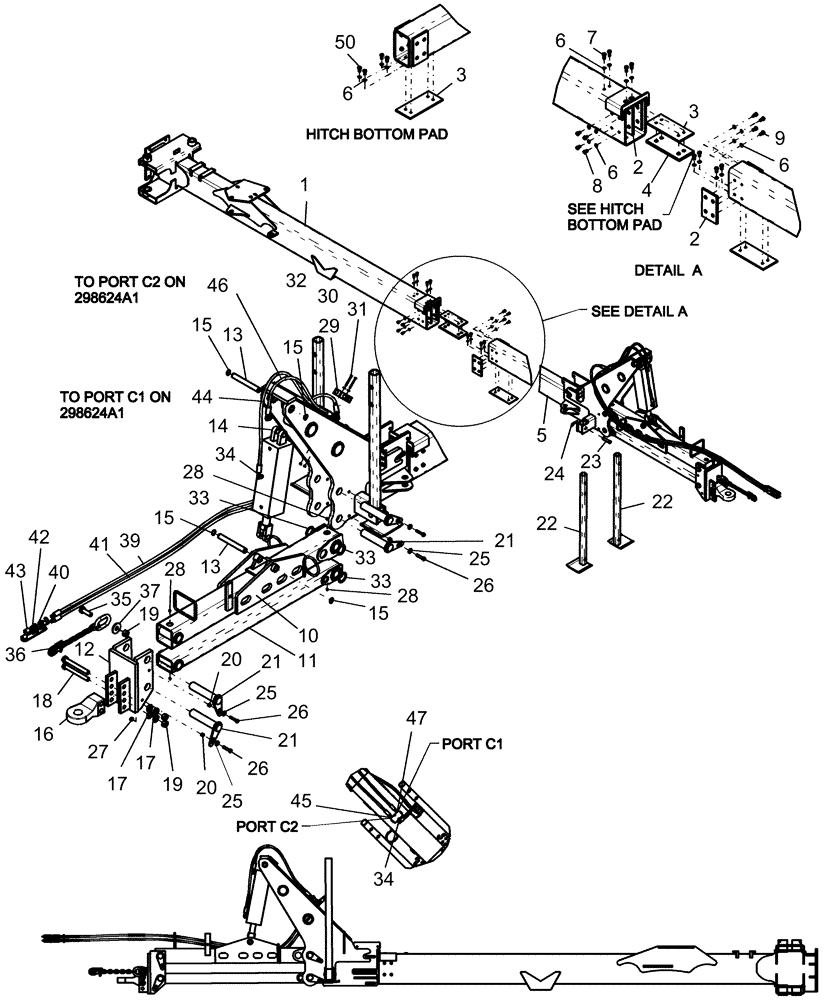

Запчасти Case IH 1250 (39.110.16) - DRAWBAR HITCH - 16 ROW (39) - FRAMES AND BALLASTING

1

87593823

HITCH

outer hitch 16 row ft

1шт.

2

87504522

SKID/SHOE

assembly 5 1/2" x 9" pad

4шт.

3

87540703

PLATE

anti-skid support

2шт.

4

87504521

SKID/SHOE

assembly 5 1/2" x 12 1/2" pad

2шт.

5

87484785

HITCH

drawbar, with decals

1шт.

5

86622073

WARNING DECAL

sign

1шт.

5

87588041

DECAL

tractor speed control

1шт.

5

87588042

DECAL

hidden grease fittings

1шт.

5

87588038

DECAL

tipping hazard

1шт.

6

87016230

WASHER

17/32" x 7/8" x .071"

24шт.

7

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

8

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

8шт.

9

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

10

87713028

TUBE

hitch, upper

1шт.

11

87713029

TUBE,1524.4 mm L

hitch, lower

1шт.

12

87713030

BRACKET

hitch clevis

1шт.

13

87694433

PIN

cylinder 31.75 mm x 254 mm

2шт.

14

87403328

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 1206.5mm Stroke

5" x 16"

1шт.

15

100-16125

SNAP RING,#125, Ext

4шт.

16

87506220

HITCH

hitch

1шт.

17

87024780

WASHER,26.98mm ID x 50.8mm OD x 5.56mm Thk

1 1/16" x 2" x .219", HDN

4шт.

18

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

2шт.

19

86511609

NUT,1"-8, G8

2шт.

20

87695199

SPACER

flag pin

4шт.

21

87695200

HITCH PIN

front drawbar

4шт.

22

87723853

STAND

2шт.

23

87403990

HEADED PIN

1" x 4 1/4"

2шт.

24

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

2шт.

25

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

4шт.

26

20987

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

4шт.

27

232-4248

LOCK NUT,1/2"-13, GC

4шт.

28

87414

LUBE NIPPLE,1/4" - 28

4шт.

29

298624A1

VALVE

double piloted check

1шт.

30

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

31

280317

BOLT,Hex, 1/4" - 20 x 3", Gr 5

2шт.

32

280129

NUT,1/4"-20

2шт.

33

86625259

WASHER,2.06" ID x 3" OD x 0.11" Thk

4шт.

34

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

4шт.

35

86539260

BOLT,Hex, 1" - 8 x 3", Gr 8

1шт.

36

87619912

CHAIN

safety, 40,400 lb

1шт.

37

495-81080

WASHER,1 1/32" x 3" x .240"

1шт.

39

139519C2

HYDRAULIC HOSE

3/8" x 135" fl

1шт.

40

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

2шт.

41

139519C2

HYDRAULIC HOSE

3/8" x 135" fl

1шт.

42

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

43

86621124

DUST CAP

Female, Quick Coupler, Black

2шт.

44

95778C1

HYDRAULIC HOSE,9.65 mm ID x 1778.00 mm, SAE 100 R1

1шт.

45

93206C1

FITTING

orifice, one-way 1.32 mm diameter

1шт.

46

1285380C2

HYDRAULIC HOSE

3/8" x 50" (1270 mm) fl

1шт.

47

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

48

87446386

HARNESS

extension AFS 10' 2"

1шт.

49

87483306

HARNESS

lighting extension

1шт.

50

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

4шт.
