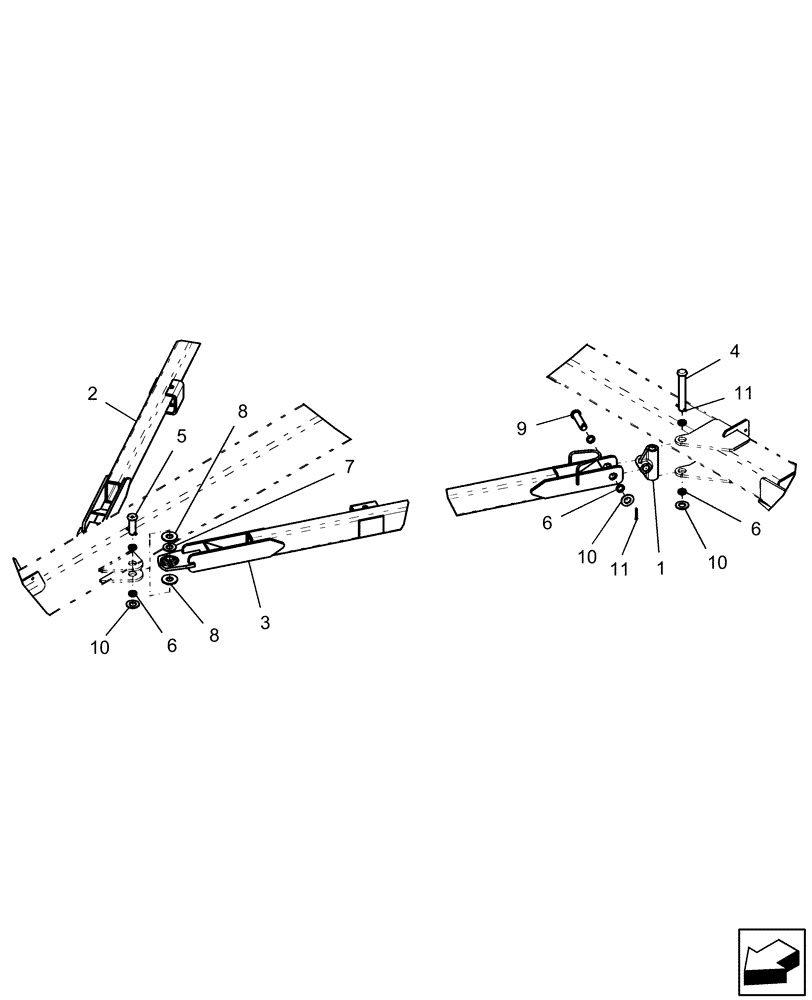

Запчасти Case IH 1250 (39.110.09) - FRAME - DRAFT TUBES - 12 ROW (39) - FRAMES AND BALLASTING

1

87614089

KNUCKLE JOINT

draft tube

2шт.

2

87717071

TUBE

draft with decals RH

1шт.

3

87717070

TUBE

draft with decals LH

1шт.

4

87575683

HEADED PIN

1 1/4" x 8 3/4"

2шт.

5

87575682

HEADED PIN

1 1/4" x 3 3/4"

2шт.

6

87504524

BUSHING

tension 38.1 mm x 31.75 mm x 12.75 mm long

12шт.

7

432582A1

WASHER,32.26mm ID x 63.5mm OD x 4.78mm Thk

1 17/64" id x 2 1/2" od x 3/16" thick

2шт.

8

495-81301

WASHER,1 9/32" x 3" x 1/4"

4шт.

9

87575681

HEADED PIN

1 1/4" x 4 3/4"

2шт.

10

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

6шт.

11

88182

COTTER PIN,1/4" OD x 2" L

6шт.
