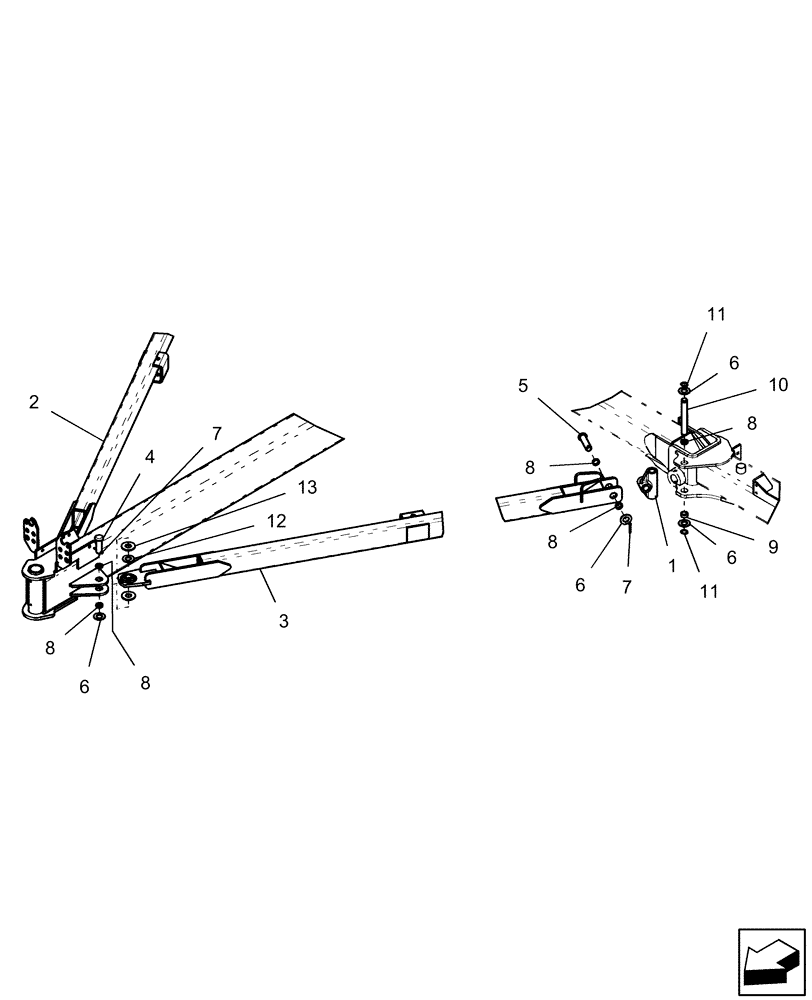

Запчасти Case IH 1250 (39.110.08) - FRAME - DRAFT TUBES - 16 ROW (39) - FRAMES AND BALLASTING

1

87614089

KNUCKLE JOINT

draft tube

2шт.

2

87717060

TUBE,3100mm L

draft with decals RH

1шт.

3

87717059

TUBE,950mm L

draft with decals LH

1шт.

4

87575682

HEADED PIN

1 1/4" x 3 3/4"

2шт.

5

87575681

HEADED PIN

1 1/4" x 4 3/4"

2шт.

6

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

8шт.

7

88182

COTTER PIN,1/4" OD x 2" L

4шт.

8

87504524

BUSHING

tension 38.1 mm x 31.75 mm x 12.75 mm long

10шт.

9

1268053C1

BUSHING,38.1mm ID x 44.45mm OD x 19.05mm L

tension 1 1/2" x 1 1/4" x 3/4" lg

2шт.

10

87717819

PIN

31.75 mm X 220 mm ul

2шт.

11

86625148

SNAP RING,#125, Ext

4шт.

12

432582A1

WASHER,32.26mm ID x 63.5mm OD x 4.78mm Thk

1 17/64" id x 2 1/2" od x 3/16" thick

2шт.

13

495-81301

WASHER,1 9/32" x 3" x 1/4"

4шт.
