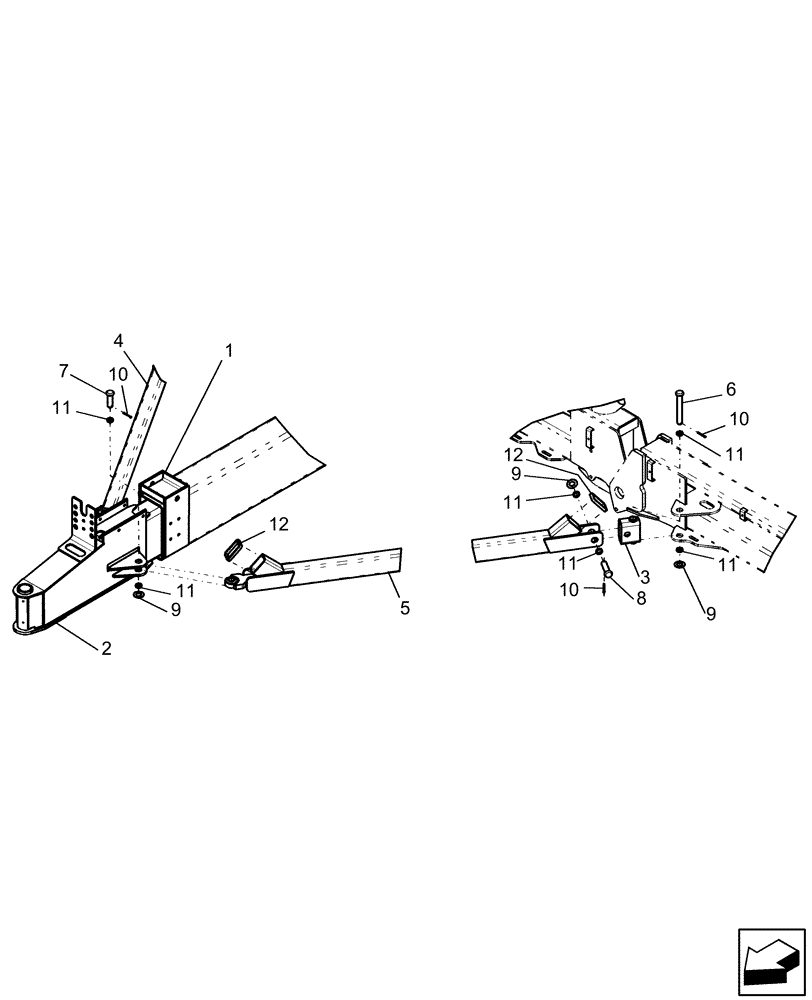

Запчасти Case IH 1250 (39.110.07[01]) - FRAME - DRAFT TUBES - 24 ROW BSN Y7S007045 (39) - FRAMES AND BALLASTING

1

87540672

HITCH

outer 24 row

1шт.

2

87540674

HITCH

inner 24 row

1шт.

3

87540720

LINK

tube assembly

2шт.

4

87580673

TUBE,6655.9 mm L

draft RH

1шт.

5

87580674

TUBE,6513.3 mm L

draft LH

1шт.

6

87575683

HEADED PIN

1 1/4" x 8 3/4"

2шт.

7

87575682

HEADED PIN

1 1/4" x 3 3/4"

2шт.

8

87575681

HEADED PIN

1 1/4" x 4 3/4"

2шт.

9

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

6шт.

10

88182

COTTER PIN,1/4" OD x 2" L

6шт.

11

87504524

BUSHING

tension 38.1 mm x 31.75 mm x 12.75 mm long

12шт.

12

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

4шт.
