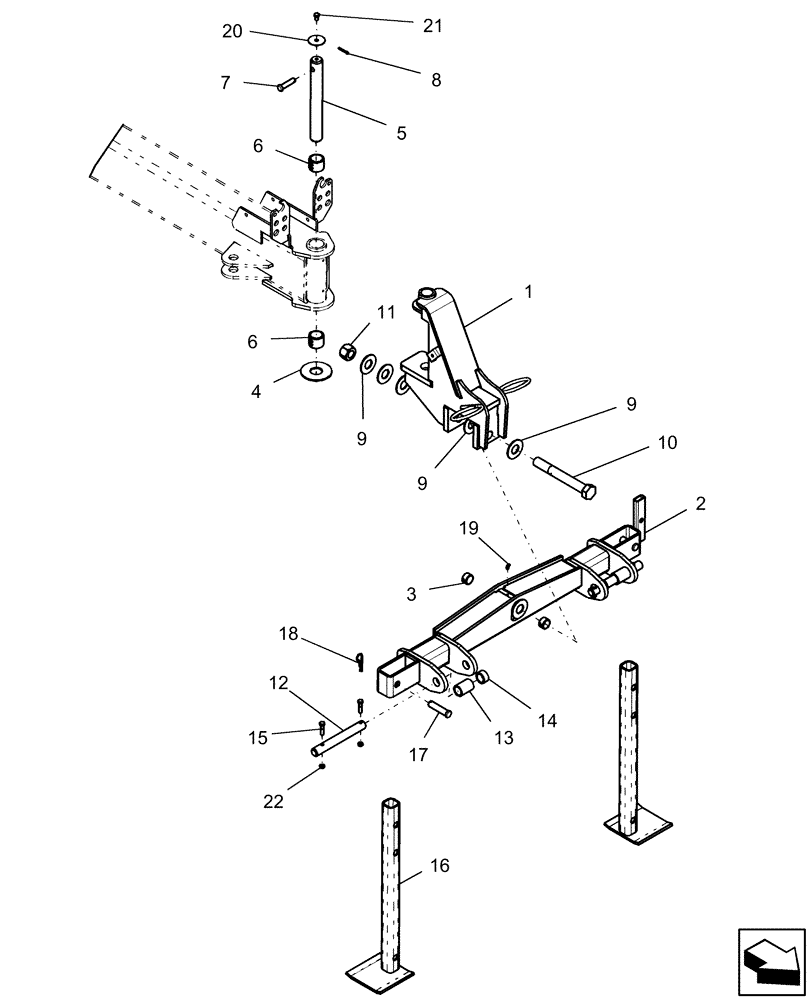

Запчасти Case IH 1250 (39.110.06[02]) - FRAME - HITCH, 2 POINT - 12 ROW AND 16 ROW ASN Y9S007001 (39) - FRAMES AND BALLASTING

1

87756300

KNUCKLE

ASSY. 2 point hitch, Years: -01-NOV-09

1шт.

1

84259414

KNUCKLE

ASSY. 2 Point Hitch, Start Year: 01-NOV-09

1шт.

2

87498569

TUBE,1130 mm L

hitch cross with decals

1шт.

3

22093

BUSHING,1-1/2" ID x 1-3/4" OD x 1" Thk

tension 1 3/4" x 1 1/2" x 1"

2шт.

4

87634870

WEAR PAD

52.3 id x 133 od x 6.35 mm thick

1шт.

5

87491100

PIN

50.5 mm x 420 mm

1шт.

6

87745612

BUSHING

tension 2 1/2" od x 2" id x 2" long

2шт.

7

280210

BOLT,Hex, 3/4"-10 x 4", G5

, Years: -01-NOV-09

1шт.

7

86624078

HEADED PIN,3/4" x 3 1/4", G5

, Start Year: 01-NOV-09

1шт.

8

86754

NUT,3/4"-10, GB

, Years: -01-NOV-09

1шт.

8

80753

COTTER PIN,1/4" x 1 1/2"

, Start Year: 01-NOV-09

1шт.

9

495-21162

WASHER,1 1/2"

6шт.

10

87358257

BOLT

1 1/2"-6 x 12", G8

1шт.

11

86992221

LOCK NUT

1 1/2"-6, GC

1шт.

12

87566119

PIN

lower 3 point

2шт.

13

599801R1

SPACER

pin, inner

2шт.

14

284219A1

SPACER

1 1/2" id hitch pin

2шт.

15

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

16

87549566

STAND

planter

2шт.

17

87403990

HEADED PIN

1" x 4 1/4"

2шт.

18

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

2шт.

19

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

20

87650708

PLATE

hitch pin cover

1шт.

21

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

1шт.

22

86632537

THIN NUT,1/2"-13, GB, Thin

4шт.
