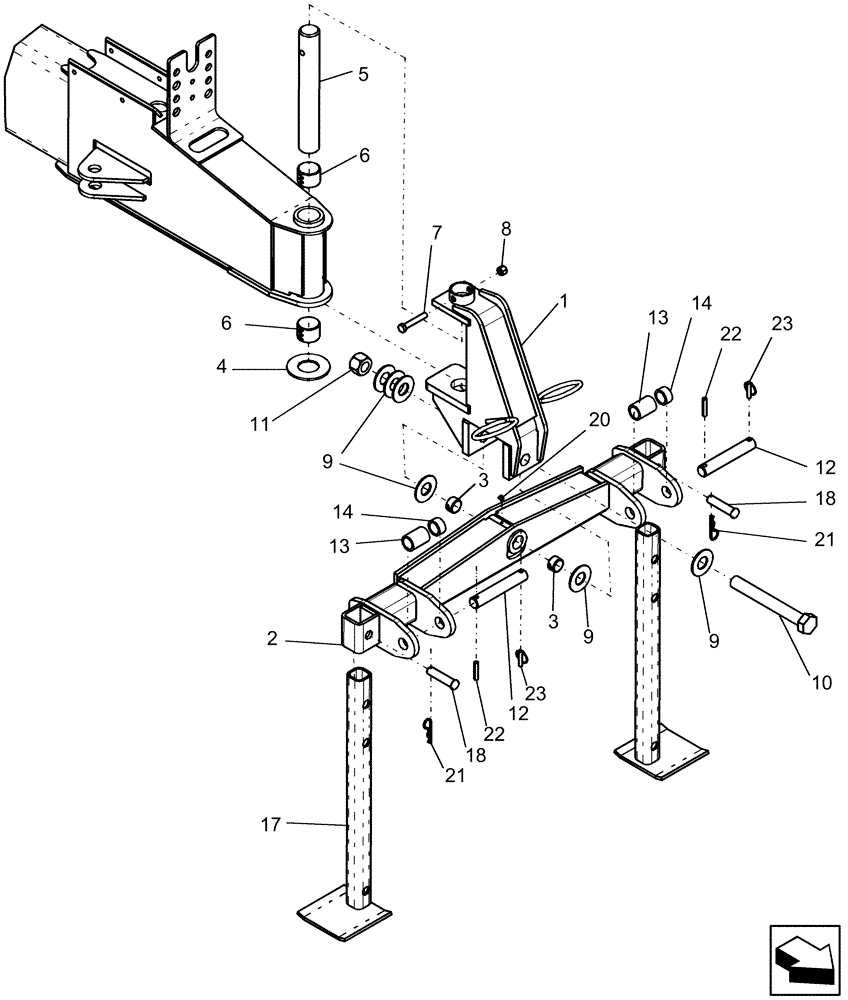

Запчасти Case IH 1250 (39.110.05) - FRAME - HITCH, 2 POINT - 24 ROW (39) - FRAMES AND BALLASTING

1

87548608

KNUCKLE

ASSY. with semi-mount hitch

1шт.

2

87548609

TUBE,1130 mm L

with hitch cross

1шт.

3

22093

BUSHING,1-1/2" ID x 1-3/4" OD x 1" Thk

tension 1 3/4" x 1 1/2" x 1"

2шт.

4

87505768

PAD

uhmw wear 5 1/4" od x 2 9/16" id x 1/2" thick, white

1шт.

5

87505769

PIN

semi-mount hitch vertical

1шт.

6

21981

BUSHING,63.5mm ID x 69.85mm OD x 50.8mm L

tension 2 3/4" x 2 1/2" x 2"

2шт.

7

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

8

86754

NUT,3/4"-10, GB

1шт.

9

495-21162

WASHER,1 1/2"

6шт.

10

87358257

BOLT

1 1/2"-6 x 12", G8

1шт.

11

86992221

LOCK NUT

1 1/2"-6, GC

1шт.

12

236592A1

PIN

lower hitch

2шт.

13

599801R1

SPACER

pin, inner

2шт.

14

284219A1

SPACER

1 1/2" id hitch pin

2шт.

17

87549566

STAND

planter

2шт.

18

87403990

HEADED PIN

1" x 4 1/4"

2шт.

20

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

21

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

2шт.

22

438-33240

PIN,1/2" x 2 1/2", Coiled

2шт.

23

372907R91

LINCH PIN

linch 7/16" x 2" heavy duty

2шт.
