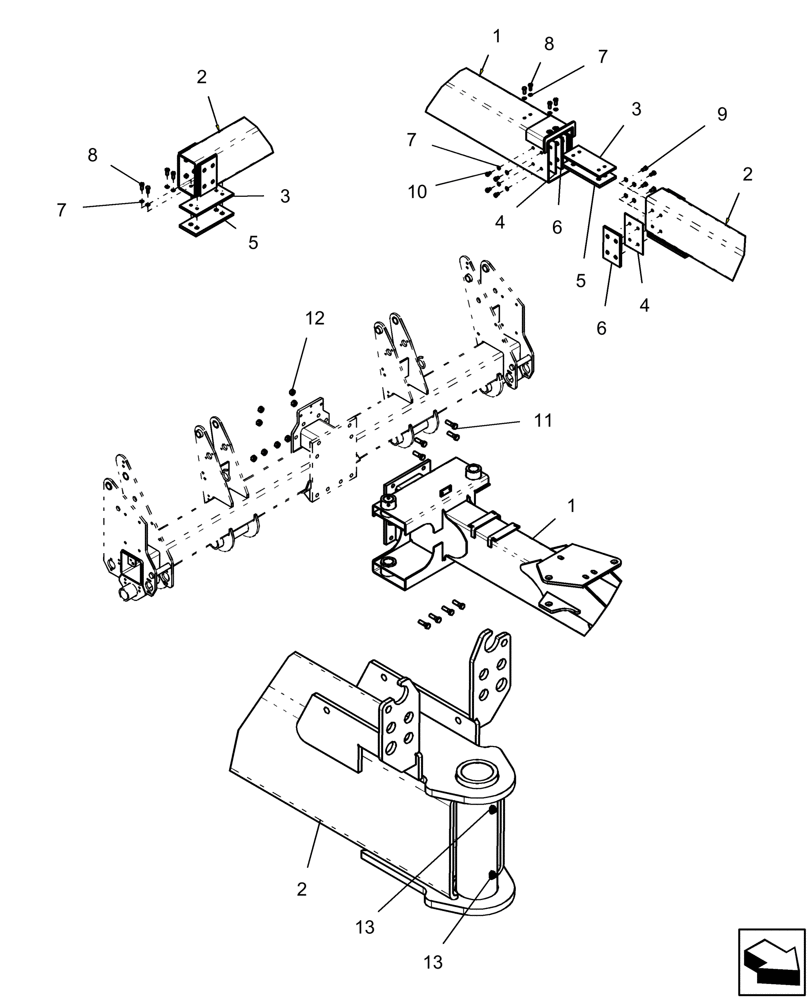

Запчасти Case IH 1250 (39.110.03) - FRAME - CENTER SECTION AND HITCH - 12 ROW (39) - FRAMES AND BALLASTING

1

87599110

HITCH

outer hitch 12 row ft

1шт.

2

87717072

HITCH

inner hitch with decals, 12 row

1шт.

3

87659643

PLATE

anti-skid support

2шт.

4

87659647

PLATE

hitch shim

4шт.

5

87504521

SKID/SHOE

assembly 5 1/2" x 12 1/2" pad

2шт.

6

87504522

SKID/SHOE

assembly 5 1/2" x 9" pad

4шт.

7

87016230

WASHER

17/32" x 7/8" x .071"

24шт.

8

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

8шт.

9

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

10

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

8шт.

11

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

8шт.

12

86518194

NUT,3/4"-10, G8

8шт.

13

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.
