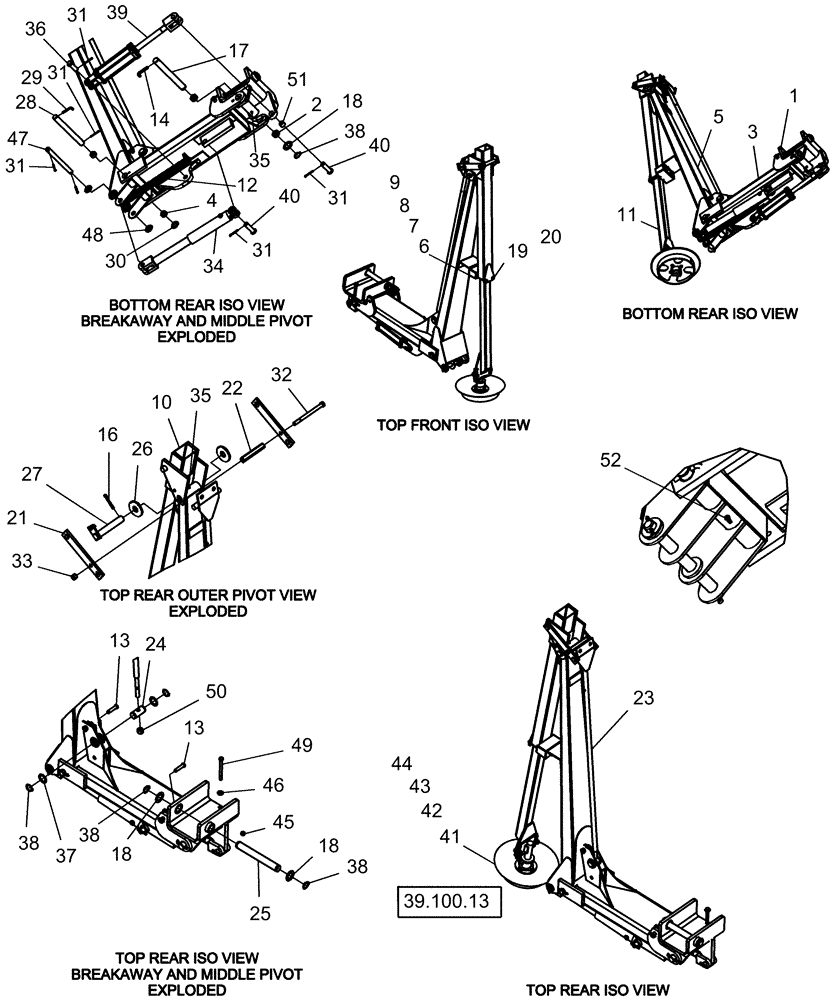

Запчасти Case IH 1250 (39.100.12) - MARKER - 12 ROW (LH SHOWN) (39) - FRAMES AND BALLASTING

1

87650731

FRAME

Marker, Inner LH

1шт.

Shown

1шт.

1

87650715

FRAME

Marker, Inner RH

1шт.

Not Shown

1шт.

2

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

tension 1 3/4" x 1 1/2" x 3/4" lg

2шт.

3

87478465

ARM

marker

1шт.

4

1268053C1

BUSHING,38.1mm ID x 44.45mm OD x 19.05mm L

tension 1 1/2" x 1 1/4" x 3/4" lg

2шт.

5

427809A1

ARM

marker 30' middle

1шт.

6

437020A1

BUMPER

rubber

1шт.

7

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

8

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

2шт.

9

86639566

NUT,5/8"-11, GB

2шт.

10

87414379

ARM

outer marker 30' with decals

1шт.

11

87417015

ARM

12/23 marker adjusting

1шт.

12

1277583C1

COIL SPRING

marker assist

1шт.

13

86624085

HEADED PIN,15.88mm OD x 69.85mm L

2шт.

14

408033A1

PIN

J lock 1/2" x 3 3/8"

1шт.

16

87575

COTTER PIN,3/8" OD x 2.5" OAL

1шт.

17

87668711

PIN

38.1 x 301.7 mm ul

1шт.

18

495-81224

WASHER,38.89mm ID x 63.5mm OD x 3.35mm Thk

3шт.

19

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

1шт.

20

280431

NUT,1/2"-13, G5

2шт.

21

427801A1

BAR

link

2шт.

22

427803A1

TUBE

spacer

1шт.

23

427817A1

ROD

30' link

1шт.

24

406319A1

TRUNNION

marker

1шт.

25

87659641

PIN

38.1 x 299 mm ul

1шт.

26

406320A1

WASHER

link pivot

2шт.

27

402227A1

SPECIAL PIN

lock

1шт.

28

406321A1

PIVOT PIN

outer arm

1шт.

29

408034A1

PIN

J lock 3/8" x 2 3/4"

1шт.

30

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

1шт.

31

88182

COTTER PIN,1/4" OD x 2" L

6шт.

32

86507001

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

1шт.

33

85700693

NUT,5/8" - 11, Gr C

1шт.

34

87430675

HYDRAULIC CYLINDER,50.8mm Rod, 204.72mm Stroke

2" x 8"

1шт.

35

87414

LUBE NIPPLE,1/4" - 28

2шт.

36

87023161

HEADED PIN,1" x 3"

1шт.

37

86632585

WASHER,1.53" ID x 2.25" OD x 0.06" Thk

2шт.

38

86632531

SNAP RING,#150, Ext

5шт.

39

86991779

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2 1/2" x 8", 3000 psi, no pins

1шт.

40

86632568

HEADED PIN,1" x 3 1/2", G5

2шт.

41

NSS

NOT SOLD SEPARAT

Refer to Disk and Depth Band Assembly figure

1шт.

42

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

43

12034871

WASHER

5/8"

2шт.

44

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

45

86992215

LOCK NUT,1/2"-13, GC

1шт.

46

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

47

441257A1

PIN,25.4mm OD x 265mm L

outer marker

1шт.

48

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

49

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

50

232-14412

NUT,3/4"-10, GB

1шт.

51

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

1шт.

52

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

53

302676A1

LINCH PIN

4.76 mm x 31.75 mm long

2шт.
