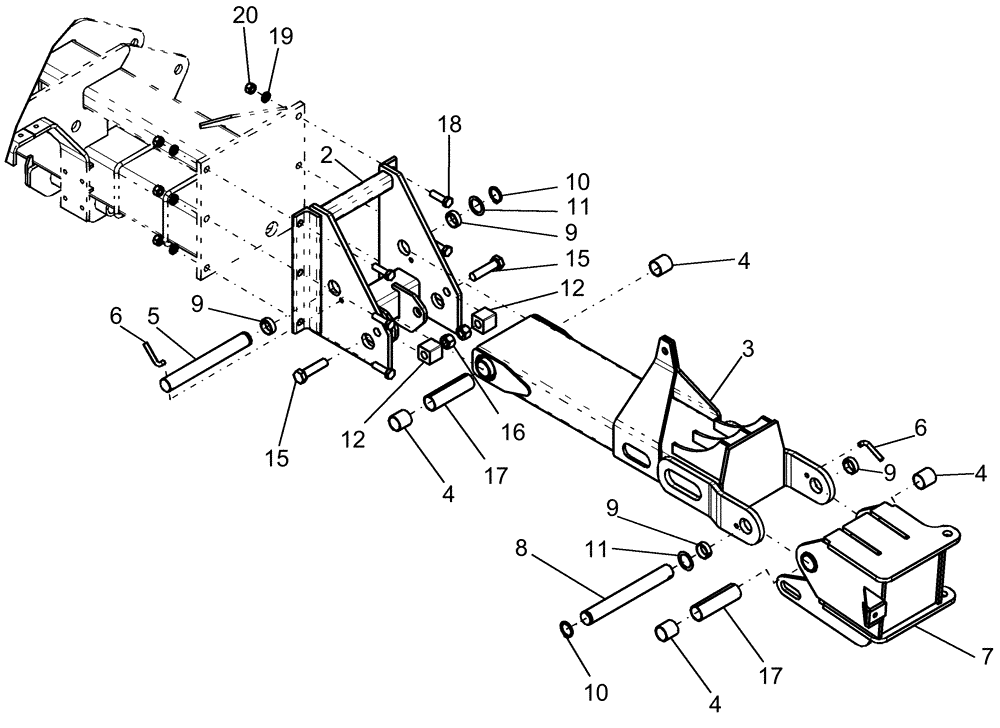

Запчасти Case IH 1250 (39.100.09) - MARKER - LOWER ROW - 24 ROW (39) - FRAMES AND BALLASTING

2

87600251

KNUCKLE

ASSY. marker mount with decals

1шт.

3

87543367

ARM

inner marker

1шт.

4

87566586

BUSHING

1 3/4" id x 2" od

4шт.

5

87538535

PIN

inner marker pivot

1шт.

6

408033A1

PIN

J lock 1/2" x 3 3/8"

2шт.

7

87546530

PIVOT

assembly, marker LH

1шт.

Shown

1шт.

7

87543651

PIVOT

assembly, marker RH

1шт.

Not Shown

1шт.

8

87504607

PIN

inner marker pivot 44.45 mm x 288 mm

1шт.

9

91302C1

BUSHING

tension 2" x 1 3/4" x 3/4"

4шт.

10

86625149

SNAP RING,#175, Ext

2шт.

11

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

2шт.

12

87505911

BAR

marker arm stop

2шт.

15

280285

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

16

280286

NUT,1"-8, GB

2шт.

17

87628245

SPACER

2" od x 186 mm

2шт.

18

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

6шт.

19

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

6шт.

20

280954

NUT,3/4"-10, G5

6шт.
