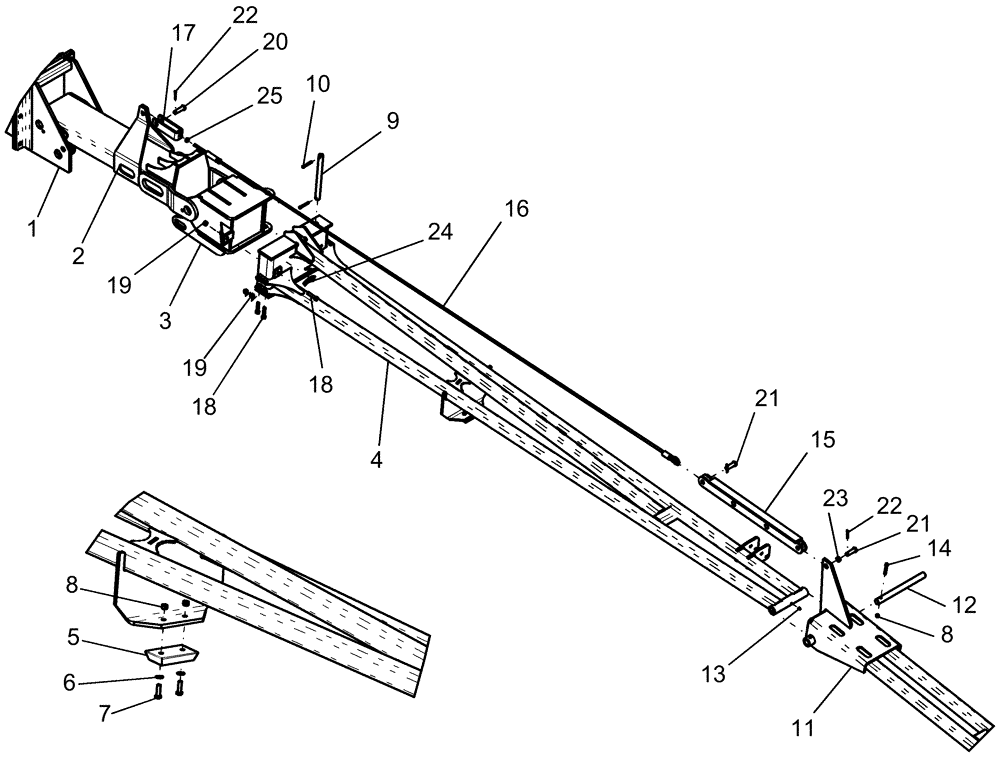

Запчасти Case IH 1250 (39.100.08[01]) - MARKER - MIDDLE ROW - 24 ROW BSN Y7S007045 (39) - FRAMES AND BALLASTING

1

87600251

KNUCKLE

ASSY. marker mount with decals

1шт.

2

87543367

ARM

inner marker

1шт.

3

87546530

PIVOT

assembly, marker LH

1шт.

Shown

1шт.

3

87543651

PIVOT

assembly, marker RH

1шт.

4

87546651

ARM

middle marker LH

1шт.

Shown

1шт.

4

87543391

ARM

middle marker RH

1шт.

5

87505918

BUMPER

rubber, marker

1шт.

6

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

7

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

8

87039402

NUT,3/8"-16, GB

3шт.

9

87502808

PIN

25.4 mm x 286.5 mm, breakaway pivot

1шт.

10

432-2432

COTTER PIN,3/8" x 2"

2шт.

11

87543291

ARM

outer marker

1шт.

12

87502817

PIN

31.75 mm x 344.5 mm, marker pivot

1шт.

13

87414

LUBE NIPPLE,1/4" - 28

1шт.

14

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

15

87543672

MOUNTING PARTS

marker cable

1шт.

16

87589088

CABLE

3878.9mm, 60' marker assembly

1шт.

17

87557027

BRACKET

marker cable adjustment

1шт.

18

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

3шт.

19

87333862

NUT

1/2"-13, GB

3шт.

20

439-51244

HEADED PIN,3/4" x 2 3/4"

1шт.

21

439-51240

HEADED PIN,19.05mm OD x 63.5mm L

2шт.

22

80753

COTTER PIN,1/4" x 1 1/2"

3шт.

23

1344763C1

BUSHING

tension 1" x 3/4" x 1/2"

1шт.

24

87542314

DECAL

tension bolt torque

1шт.

25

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.
