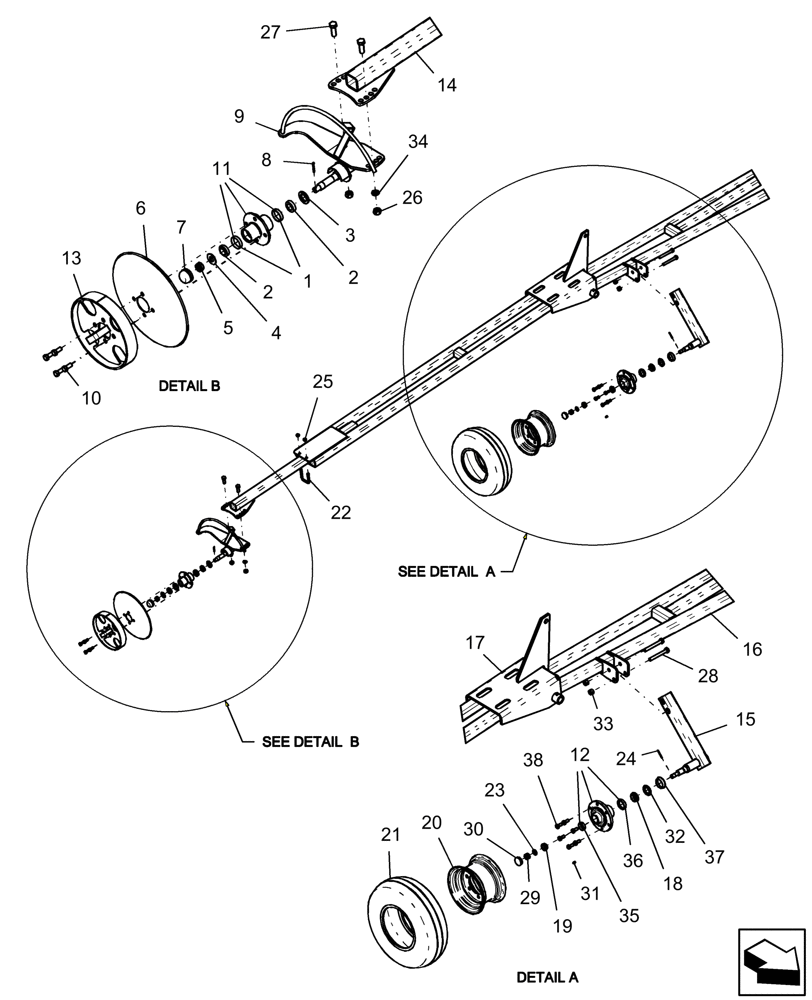

Запчасти Case IH 1250 (39.100.07[02]) - MARKER - OUTER ROW - 24 ROW ASN Y8S007001 (39) - FRAMES AND BALLASTING

1

132709

BEARING CUP,50.29mm OD x 10.67mm W

#L44610

2шт.

2

132710

BEARING CONE,25.4mm ID x 14.73mm W

TM#L44643

2шт.

3

432625A1

OIL SEAL

SE10

1шт.

4

86012106

WASHER

spindle wa10 .75 id

1шт.

5

88886

SLOTTED NUT,3/4"-16

1шт.

6

87557023

DISC

16" smooth marker

1шт.

7

9702386

DUST CAP

hub H211

1шт.

8

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

9

87410958

GUARD

disc endmarker LH

1шт.

Shown

1шт.

9

87410959

GUARD

disc endmarker RH

1шт.

Not Shown

1шт.

10

87417305

BOLT

1/2"-20 x 1", G5, WB55

4шт.

11

87412999

HUB

H211 assembly with cups and bolts

1шт.

12

427737A1

HUB

assembly, 6 bolt light

1шт.

13

87557028

RING

depth band

1шт.

14

87543302

ARM

marker extension

1шт.

15

87663796

FRAME

Marker, Wheel Axle

1шт.

16

87692446

ARM

middle marker LH

1шт.

Shown

1шт.

16

87692447

ARM

middle marker RH

1шт.

Not Shown

1шт.

17

87543291

ARM

outer marker

1шт.

18

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

1шт.

18

84356153GV

BEARING

Value

1шт.

19

36724

BEARING CONE,19.07mm ID x 16.64mm W

#LM11949

1шт.

20

10106202

WHEEL ASSY.

10 x 6 JA, Silver

1шт.

21

10008260

LAND WHEEL

20 1/2 - 8 x 10 tbls sil

1шт.

22

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

1шт.

23

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

13/16"id 1 1/4" 1/8" blk hardened

1шт.

24

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

25

280431

NUT,1/2"-13, G5

2шт.

26

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

27

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

28

426-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

29

88886

SLOTTED NUT,3/4"-16

1шт.

30

427741A1

HUB CAP

1шт.

31

87414

LUBE NIPPLE,1/4" - 28

1шт.

32

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

hub oil 1.558" id

1шт.

33

85700693

NUT,5/8" - 11, Gr C

2шт.

34

12034871

WASHER

5/8"

2шт.

35

36725

BEARING CUP,45.26mm OD x 12.06mm W

#LM11910

1шт.

36

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

1шт.

37

472222R1

SLEEVE

wear 2.33" od

1шт.

38

198056

WHEEL BOLT,1/2" - 20 x 1.031"

6шт.
