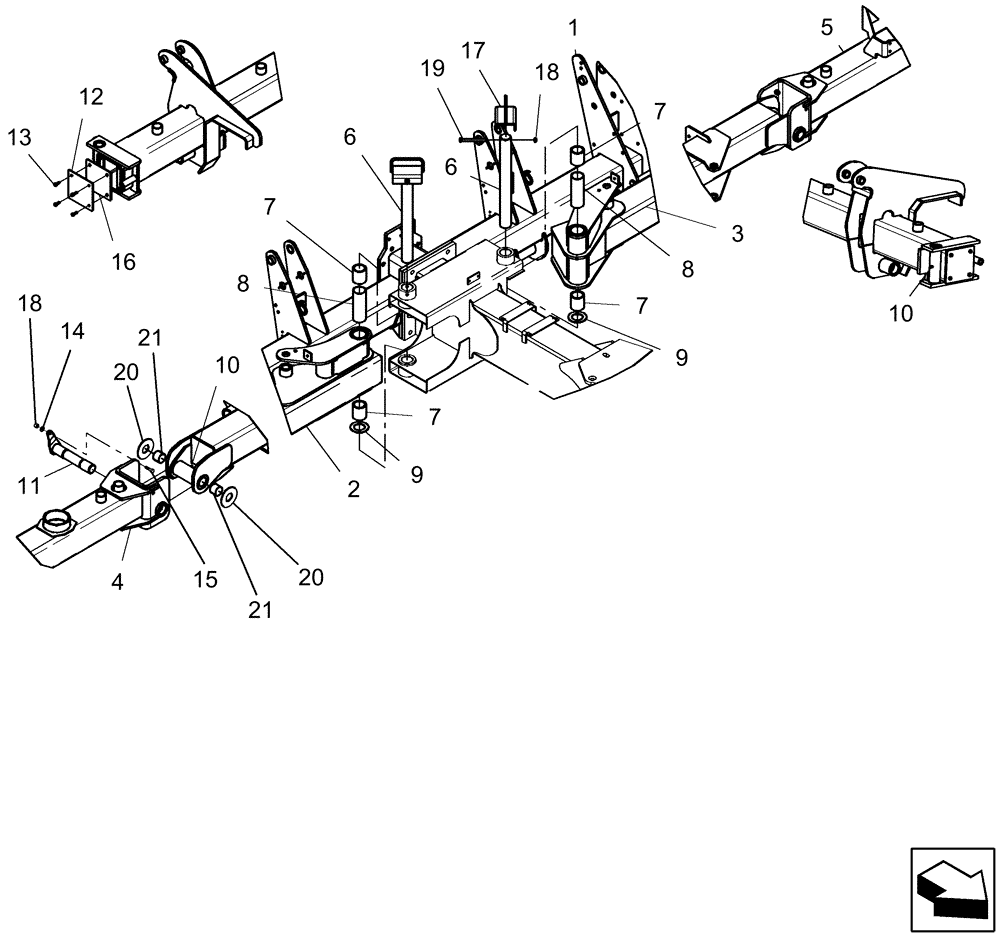

Запчасти Case IH 1250 (39.100.03) - FRAME - WING, INNER AND OUTER - 12 ROW (39) - FRAMES AND BALLASTING

1

87717067

FRAME

center section with decals

1шт.

2

84278144

BEAM

wing inner RH

1шт.

3

84278146

BEAM

wing inner LH

1шт.

4

84278148

BEAM

wing outer RH

1шт.

5

84278150

BEAM

wing outer LH

1шт.

6

87596269

PIVOT PIN

2 1/4" x 21" ul

2шт.

7

87632787

BUSHING

polylube 2 3/4" od x 2 1/4" id x 3" long

4шт.

8

87577110

SLEEVE

2.6" od x 2 3/8" id x 7.1" long

2шт.

9

87658075

WASHER

2 1/4" id x 3 3/4" od x .13" thick

2шт.

10

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

11

84277815

PIN,50.8mm OD x 292.54mm L

Wing Flex, Start Serial: YAS008064

2шт.

11

84263581

PIN

Wing flex , Serial Range: -YAS008064

2шт.

12

87643100

PLATE

vacuum cleanout

2шт.

13

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

14

87613265

WASHER,0.53" ID x 1.25" OD x 0.13" Thk

2шт.

15

20987

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

2шт.

16

87471358

GASKET

toolbar cleanout

2шт.

17

87476404

GUIDE

hydraulic hose

2шт.

18

9803187

NUT,1/2"-13, G8

4шт.

19

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

20

84278062

THRUST WASHER

, Start Serial: YAS008064

4шт.

20

87613265

WASHER,0.53" ID x 1.25" OD x 0.13" Thk

, Serial Range: -YAS008064

4шт.

21

87632788

BUSHING

, Start Serial: YAS008064

4шт.

21

84228479

TUBE

, Serial Range: -YAS008064

4шт.
