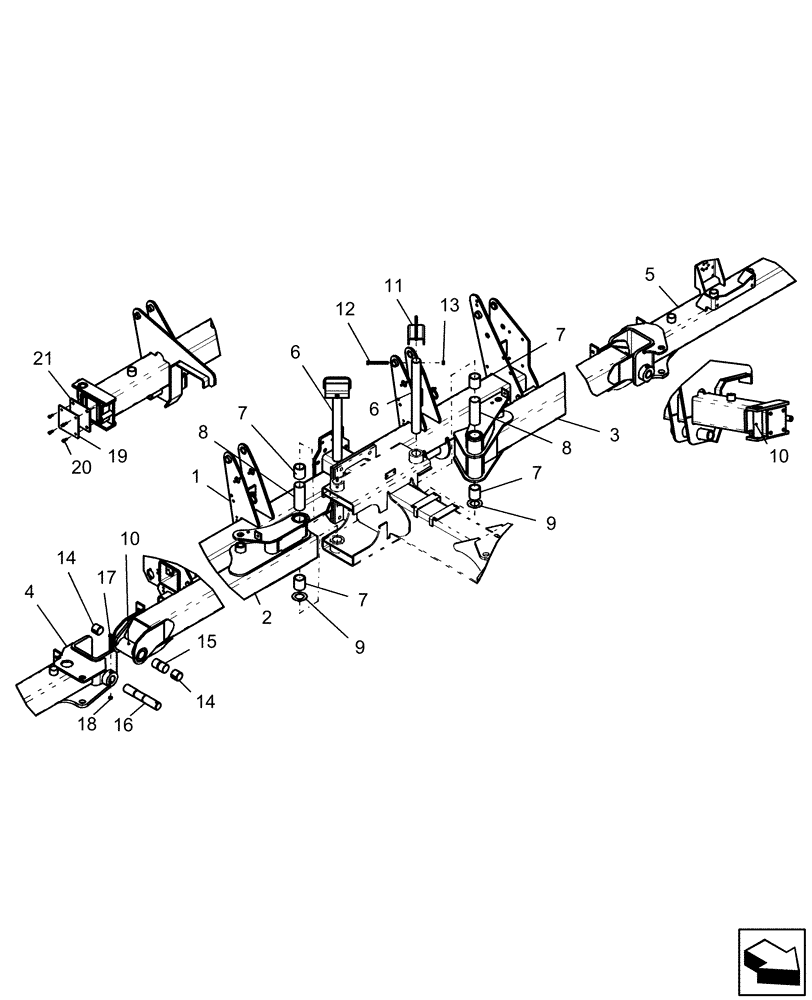

Запчасти Case IH 1250 (39.100.02[02]) - FRAME - WING, INNER AND OUTER - 16 ROW ASN YAS008050 (39) - FRAMES AND BALLASTING

1

87717067

FRAME

center section with decals

1шт.

2

84299620

BEAM

inner wing with decals RH

1шт.

3

84299619

BEAM

inner wing with decals LH

1шт.

4

84293629

BEAM

outer wing with decals RH

1шт.

5

84293631

BEAM

outer wing with decals LH

1шт.

6

87596269

PIVOT PIN

2 1/4" x 21" ul

2шт.

7

87632787

BUSHING

polylube 2 3/4" od x 2 1/4" id x 3" long

4шт.

8

87577110

SLEEVE

2.6" od x 2 3/8" id x 7.1" long

2шт.

9

87658075

WASHER

2 1/4" id x 3 3/4" od x .13" thick

2шт.

10

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

11

87476404

GUIDE

hydraulic hose

2шт.

12

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

13

9803187

NUT,1/2"-13, G8

2шт.

14

84295589

THRUST WASHER

4шт.

15

84295618

BUSHING

2.75 OD x 2.25 ID, Serial Range: -YAS008064

4шт.

16

84295613

PIN

wing flex

2шт.

17

426-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

2шт.

18

231-41412

NUT,3/4"-10, GB

2шт.

19

87643100

PLATE

vacuum cleanout

2шт.

20

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

21

87471358

GASKET

toolbar cleanout

2шт.
