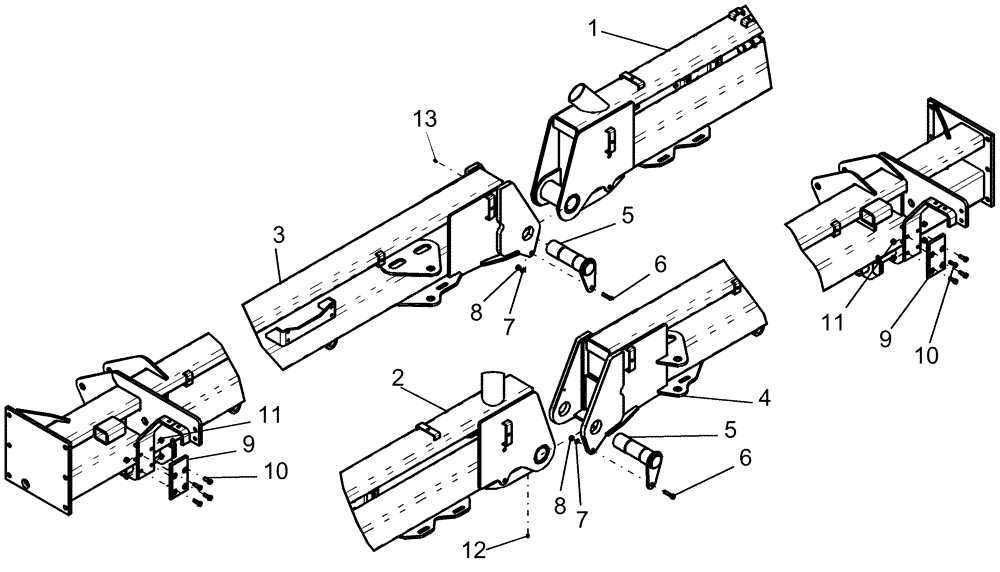

Запчасти Case IH 1250 (39.100.01[01]) - FRAME - WING, INNER AND OUTER - 24 ROW BSN Y9S007001 (39) - FRAMES AND BALLASTING

1

87668643

FRAME

inner with decal, RH

1шт.

2

87668642

FRAME

inner, with decals LH

1шт.

3

87600254

FRAME

RH outer wing 24 row with decals

1шт.

4

87600255

FRAME

LH outer wing 24 row with decals

1шт.

5

87503070

PIN,76.2mm OD x 280mm L

wing flex pivot

2шт.

6

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

, Serial Range: -Y7S007045

2шт.

6

280355

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

, Start Serial: Y8S007001

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

, Serial Range: -Y7S007045

2шт.

7

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

, Start Serial: Y8S007001

2шт.

8

280431

NUT,1/2"-13, G5

, Serial Range: -Y7S007045

2шт.

8

85700693

NUT,5/8" - 11, Gr C

, Start Serial: Y8S007001

2шт.

9

87503144

BUMPER

rubber

2шт.

10

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

8шт.

11

230-4248

LOCK NUT,1/2"-13, GA

8шт.

12

87414

LUBE NIPPLE,1/4" - 28

2шт.

13

87414

LUBE NIPPLE,1/4" - 28

2шт.
